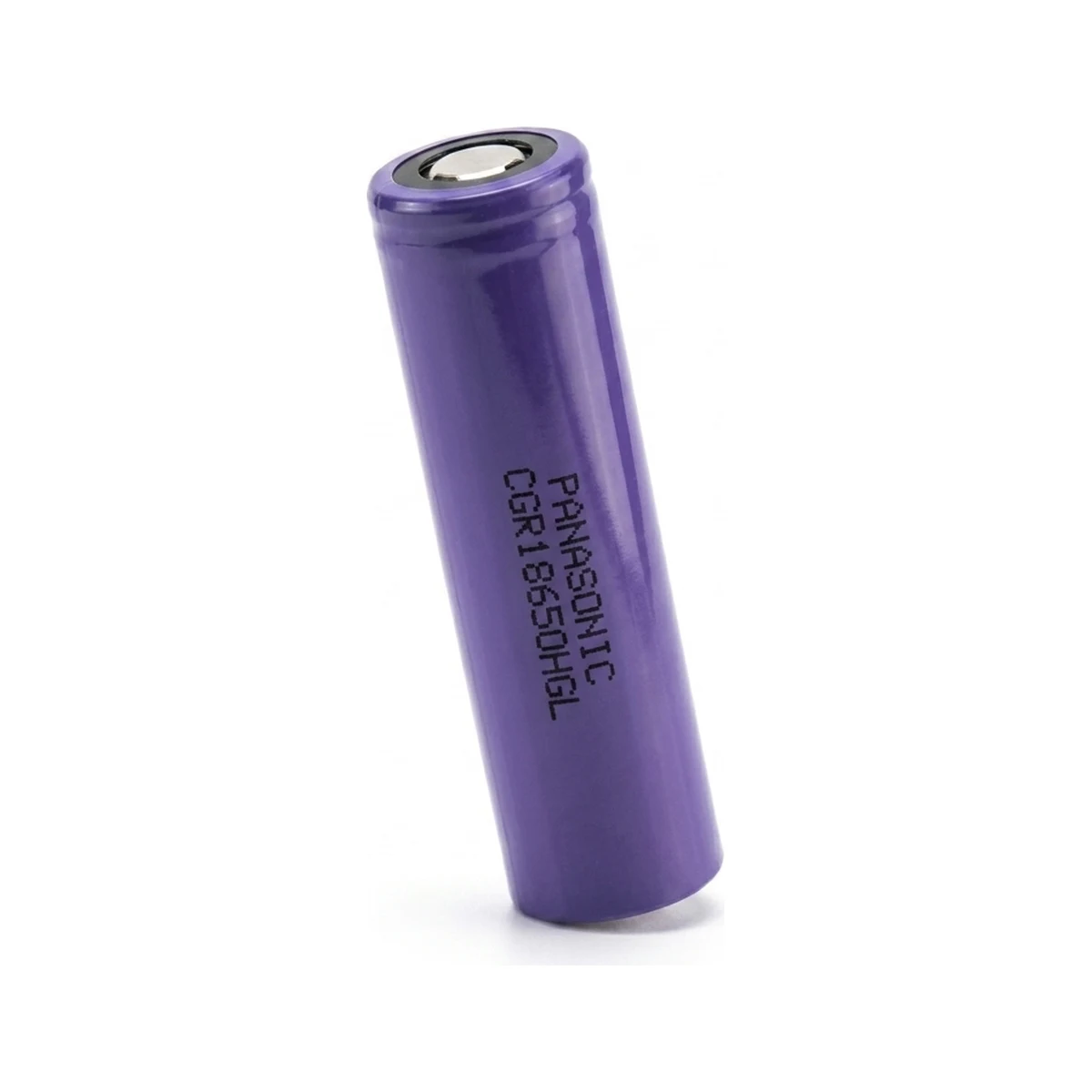

✱ RenderPanasonic CGR18650HGL
At 1800 mAh, this ranks #144 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 3 V |
| Max continuous discharge | 3.4A |
| Standard charge current | 1190 mA |
| Standard discharge current | 340mA |
| Physical | |
| Form factor | 18650 |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Purple (Dark) |
| Insulator ring | Black |
| Performance | |
| Capacity | 1800 mAh |
| Energy | 6.48 Wh |
At the standard 1190 mA charge rate, a full charge takes about 1.5 hours. The last bit is a slow taper to top it off.
Voltage operating window
3VNominal
3.6VMax charge
4.2V
Usable range: 1.2V
C-rate conversion: Panasonic CGR18650HGL (1800mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.36 A | 5h 00m |
| 0.5C | 0.9 A | 2h 00m |
| 1C | 1.8 A | 1h 00m |
Highlighted row is closest to the rated 3.4A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 900 mA | ~2h 00m |
| Standard | 1,190 mA | ~1h 31m |
| 1C | 1,800 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 3V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 6V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 9V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 12V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 21V | Ebike (24V system) |
| 10S | 36V | 42V | 30V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 39V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 42V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 48V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 1,800 mAh | 6.5 Wh | 3.4 A |
| 2P | 3,600 mAh | 13 Wh | 6.8 A |
| 3P | 5,400 mAh | 19.4 Wh | 10.2 A |
| 4P | 7,200 mAh | 25.9 Wh | 13.6 A |
| 5P | 9,000 mAh | 32.4 Wh | 17 A |
| 6P | 10,800 mAh | 38.9 Wh | 20.4 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Panasonic CGR18650HGL (this cell) | 1800 | 3.4A | 6.48 | — | — |
| Moli Energy ICR-18650J | 2300 | 5A | 8.5 | 48g | 177 |
| BAK 18650C4 | 2200 | 2A | 8.1 | — | — |
| BFN 18650-2200 | 2200 | 25A | 8.1 | — | — |
| Great Power ICR18650 2.2Ah-AT | 2200 | 4.4A | 8.1 | 45g | 181 |
| LG LGAAS41865 | 2200 | 45A | 8.1 | 44.5g | 183 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 3V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
