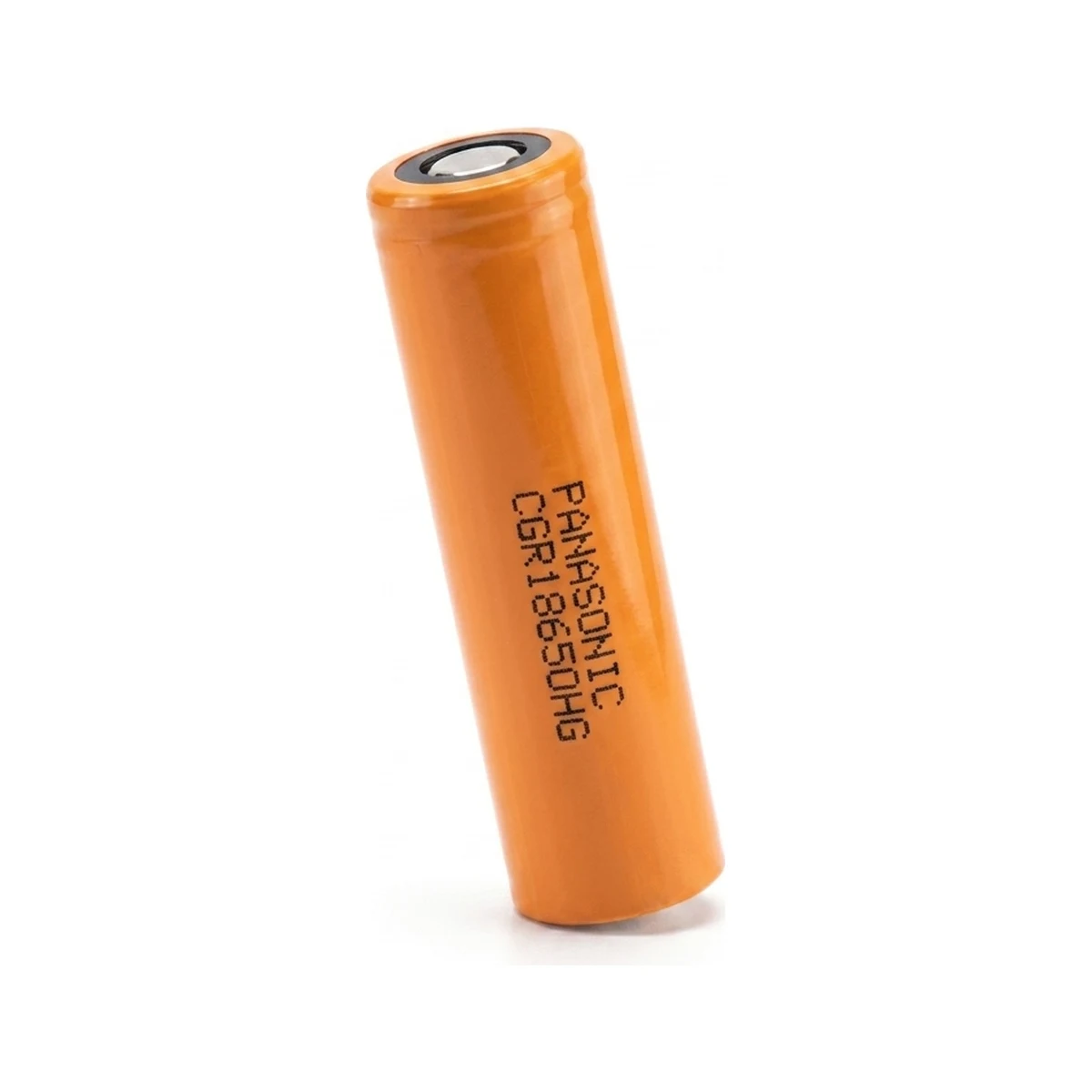

Panasonic CGR18650HG Specifications
18650 · NMC — full datasheet specs for the Panasonic CGR18650HG, plus what it delivers in common DIY pack configurations. Plan a build with it in the Battery Pack Calculator.
At 1800 mAh it ranks #140 of 165 18650 cells in our database by capacity — a lower-capacity 18650 options.
Full specifications
| Capacity | 1800 mAh |
|---|---|
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 3 V |
| Energy | 6.48 Wh |
| Standard charge current | 1190 mA |
| Standard discharge current | 340mA |
| Chemistry | NMC |
| Form factor | 18650 |
| Wrap color | Orange |
| Insulator ring | Black |
At the standard 1190 mA charge rate, a full charge takes roughly 1.5 hours plus the constant-voltage taper at the end.
The CGR18650HG in a battery pack
Common DIY series configurations using this cell's real 3.6V nominal voltage, with a 3-cells-in-parallel (3P) example for capacity:
| Config | Nominal voltage | Fully charged | Cells (3P) | Capacity (3P) | Energy (3P) | |
|---|---|---|---|---|---|---|
| 3S | 10.8 V | 12.6 V | 9 | 5.4 Ah | 58 Wh | cell count guide |
| 7S | 25.2 V | 29.4 V | 21 | 5.4 Ah | 136 Wh | cell count guide |
| 10S | 36 V | 42 V | 30 | 5.4 Ah | 194 Wh | cell count guide |
| 13S | 46.8 V | 54.6 V | 39 | 5.4 Ah | 253 Wh | cell count guide |
| 14S | 50.4 V | 58.8 V | 42 | 5.4 Ah | 272 Wh | cell count guide |
Size a full pack around the CGR18650HG — voltage, capacity, runtime, and BMS:
