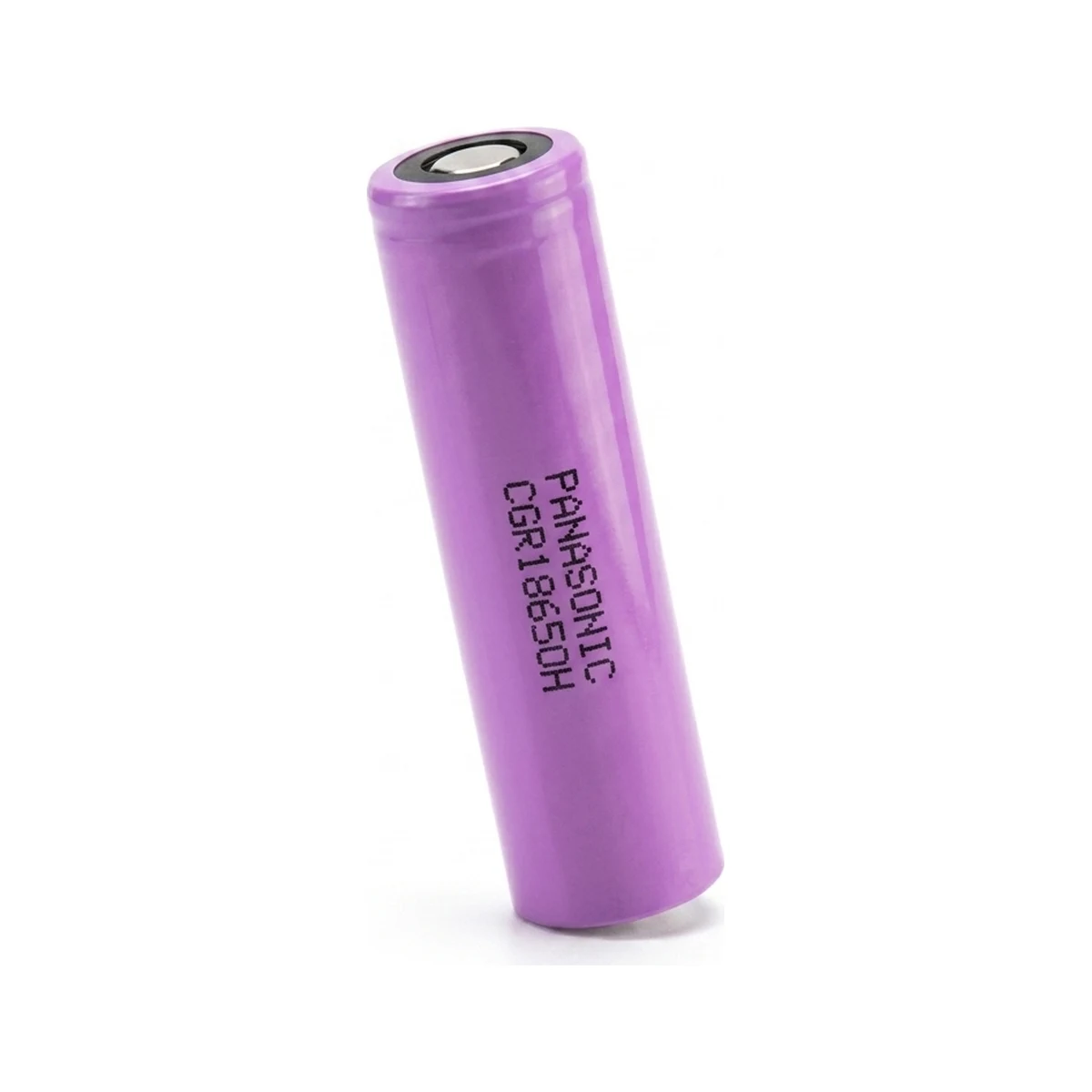

✱ RenderPanasonic CGR18650H
At 1500 mAh, this ranks #149 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.7 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 3 V |
| Standard charge current | 980 mA |
| Standard discharge current | 280mA |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.3mm × 64.7mm |
| Weight | 25 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Purple |
| Insulator ring | Black |
| Performance | |
| Capacity | 1500 mAh |
| Energy | 5.55 Wh |
| Specific energy | 222 Wh/kg |
| Energy density | 326.13 Wh/L |
| Operating Limits | |
| Charge temp | 0°C to 45°C |
| Discharge temp | -20°C to 60°C |
At the standard 980 mA charge rate, a full charge takes about 1.5 hours. The last bit is a slow taper to top it off.
Voltage operating window
3VNominal
3.7VMax charge
4.2V
Usable range: 1.2V
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 750 mA | ~2h 00m |
| Standard | 980 mA | ~1h 32m |
| 1C | 1,500 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.7V | 4.2V | 3V | Flashlights, single-cell devices |
| 2S | 7.4V | 8.4V | 6V | RC vehicles, 7.2V packs |
| 3S | 11.1V | 12.6V | 9V | Power tools (10.8V nominal) |
| 4S | 14.8V | 16.8V | 12V | Ebike (small), some power tools |
| 7S | 25.9V | 29.4V | 21V | Ebike (24V system) |
| 10S | 37V | 42V | 30V | Ebike (36V system) |
| 13S | 48.1V | 54.6V | 39V | Ebike (48V standard) |
| 14S | 51.8V | 58.8V | 42V | Ebike (52V high-power) |
| 16S | 59.2V | 67.2V | 48V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy |
|---|---|---|
| 1P | 1,500 mAh | 5.6 Wh |
| 2P | 3,000 mAh | 11.1 Wh |
| 3P | 4,500 mAh | 16.7 Wh |
| 4P | 6,000 mAh | 22.2 Wh |
| 5P | 7,500 mAh | 27.8 Wh |
| 6P | 9,000 mAh | 33.3 Wh |
Example pack configurations
Design a custom pack with this cell:
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Panasonic CGR18650H (this cell) | 1500 | — | 5.55 | 25g | 222 |
| ATL INR18650 | 2000 | 6A | 7.4 | 45g | 164 |
| Cham CMICR18650F8 | 2000 | 5.1A | 7.4 | 45g | 164 |
| Great Power ICR 18650 | 2000 | 4A | 7.4 | 44g | 168 |
| HYB ICR18650NM | 2000 | — | 7.4 | — | — |
| Samsung ICR18650-20 | 2000 | 4A | 7.4 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 3V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
