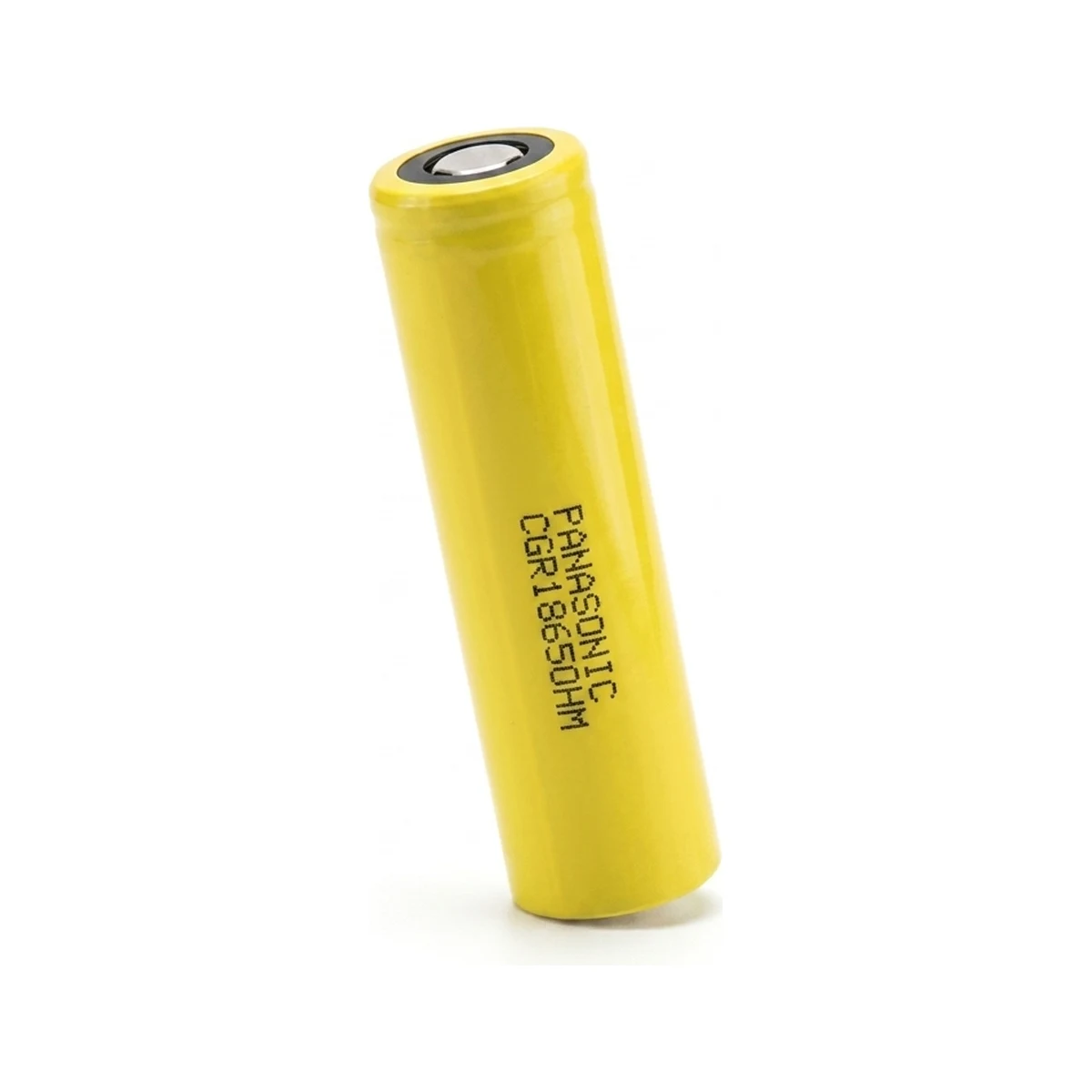

✱ RenderPanasonic CGR18650HM
At 1630 mAh, this ranks #148 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.7 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 3 V |
| Max continuous discharge | 3.2A |
| Standard charge current | 1120 mA |
| Standard discharge current | 320mA |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.3mm × 64.7mm |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Yellow |
| Insulator ring | Black |
| Performance | |
| Capacity | 1630 mAh |
| Energy | 6.03 Wh |
| Energy density | 354.34 Wh/L |
| Power density (volumetric) | 696 W/L |
| Year released | 2000 |
At the standard 1120 mA charge rate, a full charge takes about 1.5 hours. The last bit is a slow taper to top it off.
Voltage operating window
3VNominal
3.7VMax charge
4.2V
Usable range: 1.2V
C-rate conversion: Panasonic CGR18650HM (1630mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.33 A | 5h 00m |
| 0.5C | 0.82 A | 2h 00m |
| 1C | 1.63 A | 1h 00m |
| 2C | 3.26 A | 30m |
Highlighted row is closest to the rated 3.2A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 815 mA | ~2h 00m |
| Standard | 1,120 mA | ~1h 27m |
| 1C | 1,630 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.7V | 4.2V | 3V | Flashlights, single-cell devices |
| 2S | 7.4V | 8.4V | 6V | RC vehicles, 7.2V packs |
| 3S | 11.1V | 12.6V | 9V | Power tools (10.8V nominal) |
| 4S | 14.8V | 16.8V | 12V | Ebike (small), some power tools |
| 7S | 25.9V | 29.4V | 21V | Ebike (24V system) |
| 10S | 37V | 42V | 30V | Ebike (36V system) |
| 13S | 48.1V | 54.6V | 39V | Ebike (48V standard) |
| 14S | 51.8V | 58.8V | 42V | Ebike (52V high-power) |
| 16S | 59.2V | 67.2V | 48V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 1,630 mAh | 6 Wh | 3.2 A |
| 2P | 3,260 mAh | 12.1 Wh | 6.4 A |
| 3P | 4,890 mAh | 18.1 Wh | 9.6 A |
| 4P | 6,520 mAh | 24.1 Wh | 12.8 A |
| 5P | 8,150 mAh | 30.2 Wh | 16 A |
| 6P | 9,780 mAh | 36.2 Wh | 19.2 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Panasonic CGR18650HM (this cell) | 1630 | 3.2A | 6.03 | — | — |
| Moli Energy ICR-18650H | 2100 | 5A | 7.8 | 47.5g | 164 |
| Sanyo UR18650FJ | 2100 | 4.2A | 7.8 | 46.5g | 167 |
| LG LGDAHD2C1865 | 2100 | 20A | 7.7 | 48g | 160 |
| ATL INR18650 | 2000 | 6A | 7.4 | 45g | 164 |
| Cham CMICR18650F8 | 2000 | 5.1A | 7.4 | 45g | 164 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 3V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
