Battery Building ToolsCell Database INR18650-13B

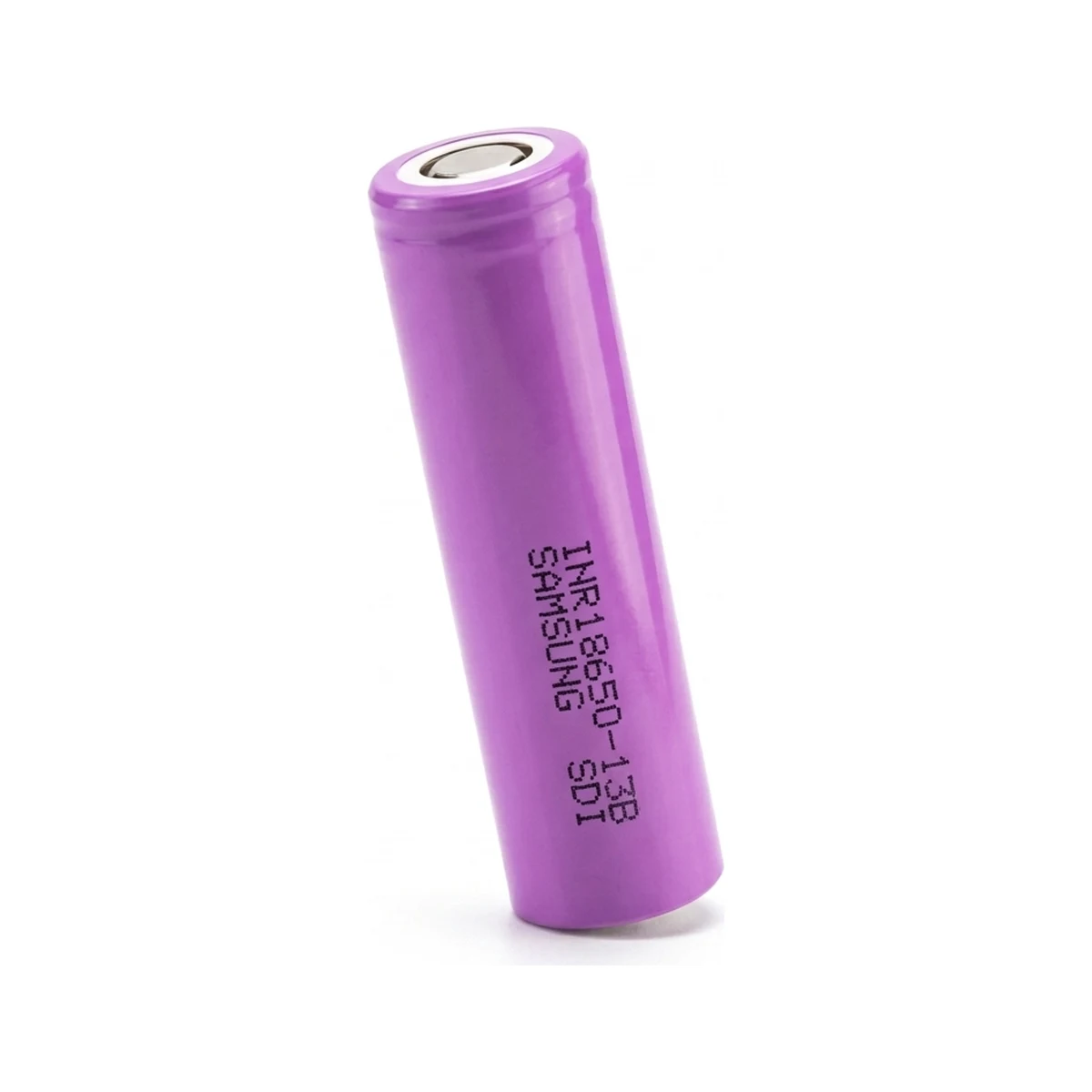

✱ Render

18.4 × 64.85 mm · 45 g

18650NMC

Samsung INR18650-13B

Name: Samsung INR18650-13B Lithium Battery Cell
Brand: Samsung

Samsung

Capacity1300 mAh4.68 Wh · 104 Wh/kg

Rated continuous23 A23A

Resistance60 mΩDC internal resistance

Voltage window3.6 V2.5 – 4.2 V

Standard charge650 mA~2 h to full

Build a pack with this cell →Download spec sheet (PDF)

At 1300 mAh, this ranks #162 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. Higher discharge than 95% of 18650 cells in our database. Great for high-drain builds.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	23A
Standard charge current	650 mA
Standard discharge current	260mA
Internal resistance	60 mΩ
Physical
Form factor	18650
Dimensions	18.4mm × 64.85mm
Weight	45 g
Top type	Flat Top
Protected	No
Wrap color	Purple
Insulator ring	White
Performance
Capacity	1300 mAh
Energy	4.68 Wh
Specific energy	104 Wh/kg
Energy density	271.4 Wh/L
Power density (gravimetric)	1,840 W/kg
Power density (volumetric)	4,802 W/L
Operating Limits
Charge temp	0°C to 50°C
Discharge temp	-20°C to 75°C

At the standard 650 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.5VNominal
3.6VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Samsung INR18650-13B (1300mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.26 A	5h 00m
0.5C	0.65 A	2h 00m
1C	1.3 A	1h 00m
2C	2.6 A	30m
3C	3.9 A	20m
5C	6.5 A	12m
8C	10.4 A	7m 30s
10C	13 A	6m
15C	19.5 A	4m

Highlighted row is closest to the rated 23A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	650 mA	~2h 00m
1C	1,300 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.2V	8.4V	5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.4V	16.8V	10V	Ebike (small), some power tools
7S	25.2V	29.4V	17.5V	Ebike (24V system)
10S	36V	42V	25V	Ebike (36V system)
13S	46.8V	54.6V	32.5V	Ebike (48V standard)
14S	50.4V	58.8V	35V	Ebike (52V high-power)
16S	57.6V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	1,300 mAh	4.7 Wh	23 A
2P	2,600 mAh	9.4 Wh	46 A
3P	3,900 mAh	14 Wh	69 A
4P	5,200 mAh	18.7 Wh	92 A
5P	6,500 mAh	23.4 Wh	115 A
6P	7,800 mAh	28.1 Wh	138 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal2,600mAh66Wh46A maxCell weight: 0.63 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells46.8V nominal5,200mAh243Wh92A maxCell weight: 2.34 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells57.6V nominal5,200mAh300Wh92A maxCell weight: 2.88 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells14.4V nominal7,800mAh112Wh138A maxCell weight: 1.08 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsToo low capacity for practical powerwall use. You'd need too many cells.

Ebike PacksNot enough discharge for ebike use. Voltage sag would be a problem under load.

Car AudioEnough discharge to handle amplifier bursts without voltage sag.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsLower capacity means shorter runtime. Better cells are available for flashlight use.

Power ToolsMay work for lighter-duty tools. Check your tool's current requirements.

Physical dimensions

Dimensions18.4mm × 64.85mm

TopFlat Top

Format18650

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Samsung INR18650-13B (this cell)	1300	23A	4.68	45g	104
GP Batteries GP1865L180	1800	1.8A	6.7	—	—
Panasonic CGR18650HG	1800	3.4A	6.5	42g	154
Panasonic CGR18650HGL	1800	3.4A	6.5	—	—
Sanyo UR18650P	1700	—	6.3	—	—
Panasonic CGR18650HM	1630	3.2A	6	—	—

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Samsung INR18650-13B?

What is the maximum discharge rate of the Samsung INR18650-13B?

How many INR18650-13B cells do I need for a 48V ebike battery?

What does the Samsung INR18650-13B weigh?

Can I use the INR18650-13B for vaping?

What temperature range can the INR18650-13B operate in?

What size is the Samsung INR18650-13B?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
