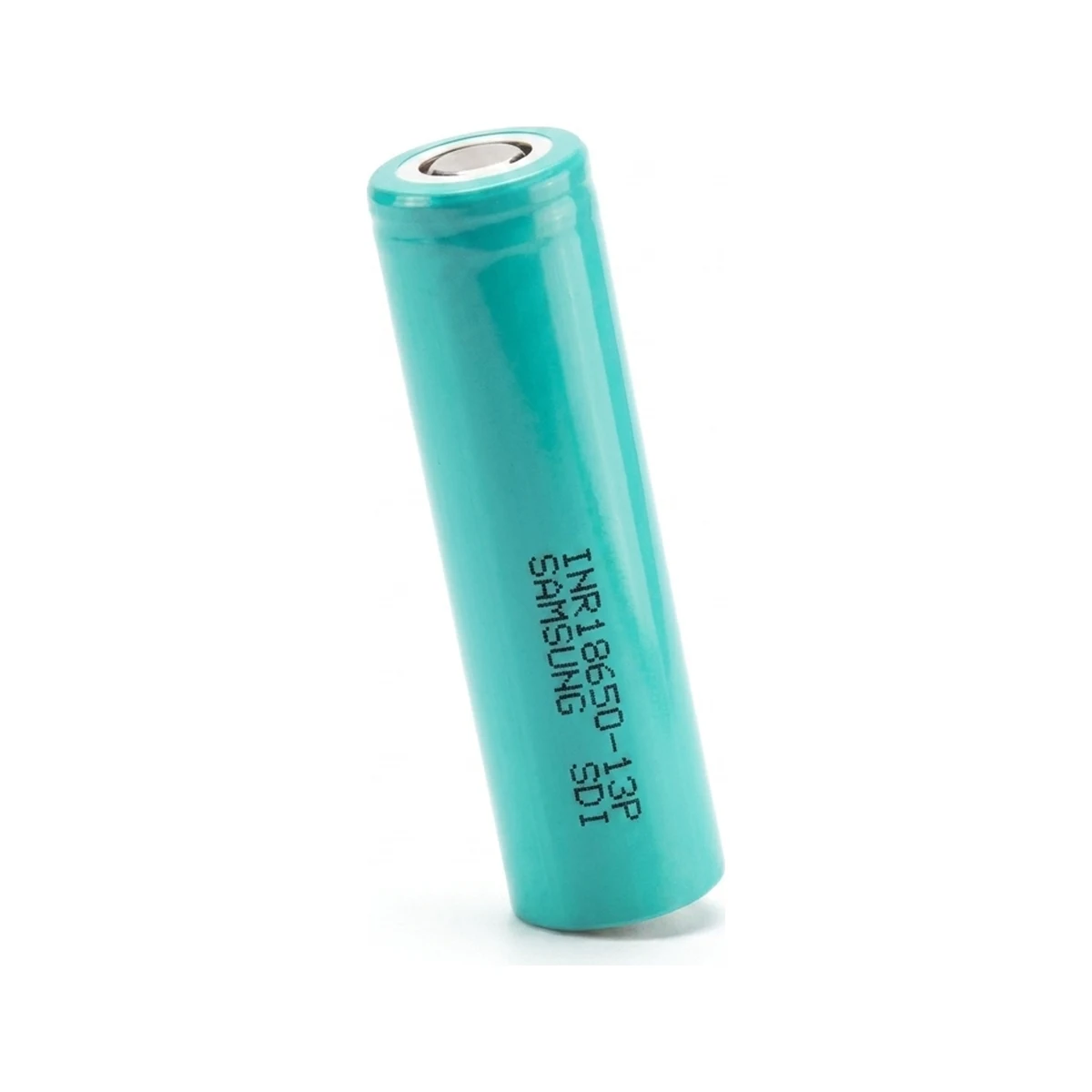

✱ RenderSamsung INR18650-13P
At 1300 mAh, this ranks #162 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. Higher discharge than 85% of 18650 cells in our database. Great for high-drain builds.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.7 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 18A |
| Standard charge current | 1300 mA |
| Standard discharge current | 300mA |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.4mm × 65mm |
| Weight | 42 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Turquoise |
| Insulator ring | White |
| Performance | |
| Capacity | 1300 mAh |
| Energy | 4.81 Wh |
| Specific energy | 114.52 Wh/kg |
| Energy density | 278.3 Wh/L |
| Power density (gravimetric) | 1,586 W/kg |
| Power density (volumetric) | 3,853 W/L |
| Operating Limits | |
| Charge temp | 0°C to 45°C |
| Discharge temp | -20°C to 60°C |
At the standard 1300 mA charge rate, a full charge takes about 1 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.7VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: Samsung INR18650-13P (1300mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.26 A | 5h 00m |
| 0.5C | 0.65 A | 2h 00m |
| 1C | 1.3 A | 1h 00m |
| 2C | 2.6 A | 30m |
| 3C | 3.9 A | 20m |
| 5C | 6.5 A | 12m |
| 8C | 10.4 A | 7m 30s |
| 10C | 13 A | 6m |
Highlighted row is closest to the rated 18A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 650 mA | ~2h 00m |
| 1C | 1,300 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.7V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.4V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 11.1V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.8V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.9V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 37V | 42V | 25V | Ebike (36V system) |
| 13S | 48.1V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 51.8V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 59.2V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 1,300 mAh | 4.8 Wh | 18 A |
| 2P | 2,600 mAh | 9.6 Wh | 36 A |
| 3P | 3,900 mAh | 14.4 Wh | 54 A |
| 4P | 5,200 mAh | 19.2 Wh | 72 A |
| 5P | 6,500 mAh | 24 Wh | 90 A |
| 6P | 7,800 mAh | 28.9 Wh | 108 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Samsung INR18650-13P (this cell) | 1300 | 18A | 4.81 | 42g | 114.52 |
| GP Batteries GP1865L180 | 1800 | 1.8A | 6.7 | — | — |
| Panasonic CGR18650HG | 1800 | 3.4A | 6.5 | 42g | 154 |
| Panasonic CGR18650HGL | 1800 | 3.4A | 6.5 | — | — |
| Sanyo UR18650P | 1700 | — | 6.3 | — | — |
| Panasonic CGR18650HM | 1630 | 3.2A | 6 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
