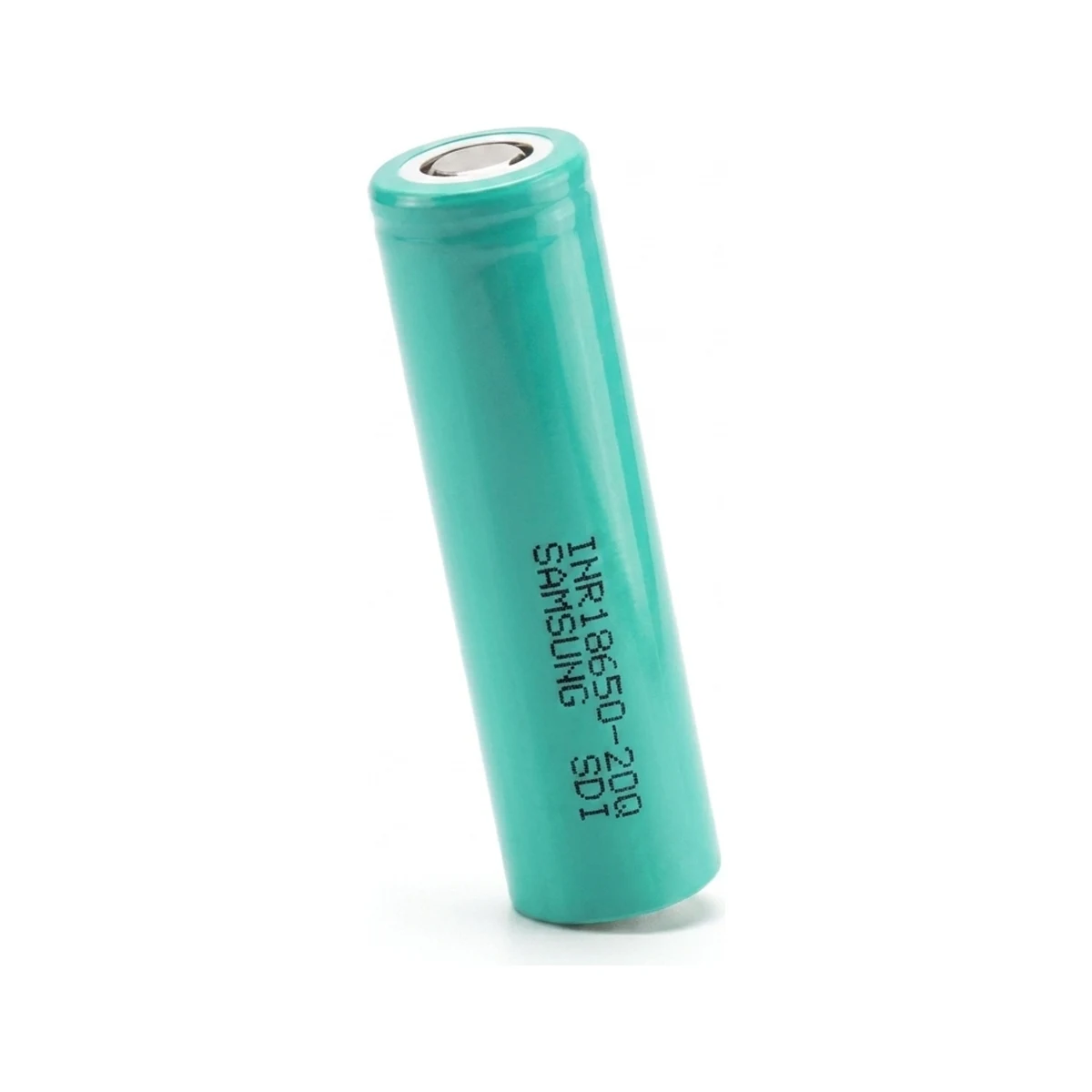

✱ RenderSamsung INR18650-20Q
At 2000 mAh, this ranks #127 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. Higher discharge than 100% of 18650 cells in our database. Great for high-drain builds.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2 V |
| Max continuous discharge | 18650A (Mooch-tested) |
| Mooch CDR (trusted) | 18650 A |
| Standard charge current | 1000 mA |
| Standard discharge current | 400mA |
| Internal resistance | 18 mΩ |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.33mm × 65.05mm |
| Weight | 45 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Teal |
| Insulator ring | White |
| Performance | |
| Capacity | 2000 mAh |
| Energy | 7.2 Wh |
| Specific energy | 160 Wh/kg |
| Energy density | 419.44 Wh/L |
| Power density (gravimetric) | 1,492,000 W/kg |
| Power density (volumetric) | 3,911,283 W/L |
| Year released | 2011 |
| Operating Limits | |
| Charge temp | 0°C to 50°C |
| Discharge temp | -20°C to 75°C |
Independent test data: Mooch's test of the INR18650-20Q ↗
At the standard 1000 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.
Voltage operating window
2VNominal
3.6VMax charge
4.2V
Usable range: 2.2V
C-rate conversion: Samsung INR18650-20Q (2000mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.4 A | 5h 00m |
| 0.5C | 1 A | 2h 00m |
| 1C | 2 A | 1h 00m |
| 2C | 4 A | 30m |
| 3C | 6 A | 20m |
| 5C | 10 A | 12m |
| 8C | 16 A | 7m 30s |
| 10C | 20 A | 6m |
| 15C | 30 A | 4m |
| 20C | 40 A | 3m |
| 25C | 50 A | 2m 24s |
| 30C | 60 A | 2m |
Highlighted row is closest to the rated 18650A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,000 mA | ~2h 00m |
| 1C | 2,000 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 4V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 6V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 8V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 14V | Ebike (24V system) |
| 10S | 36V | 42V | 20V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 26V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 28V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 32V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 2,000 mAh | 7.2 Wh | 18650 A |
| 2P | 4,000 mAh | 14.4 Wh | 37300 A |
| 3P | 6,000 mAh | 21.6 Wh | 55950 A |
| 4P | 8,000 mAh | 28.8 Wh | 74600 A |
| 5P | 10,000 mAh | 36 Wh | 93250 A |
| 6P | 12,000 mAh | 43.2 Wh | 111900 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Samsung INR18650-20Q (this cell) | 2000 | 18650A | 7.2 | 45g | 160 |
| LG LGDBHE21865 | 2500 | 20A | 9.3 | 48g | 193 |
| Sanyo UR18650F | 2500 | 5A | 9.3 | 47g | 197 |
| Sanyo UR18650FM | 2500 | 5A | 9.3 | 47g | 197 |
| LG LGCP218650 | 2500 | — | 9 | — | — |
| LG LGDBHE41865 | 2500 | 20A | 9 | 47g | 191 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
