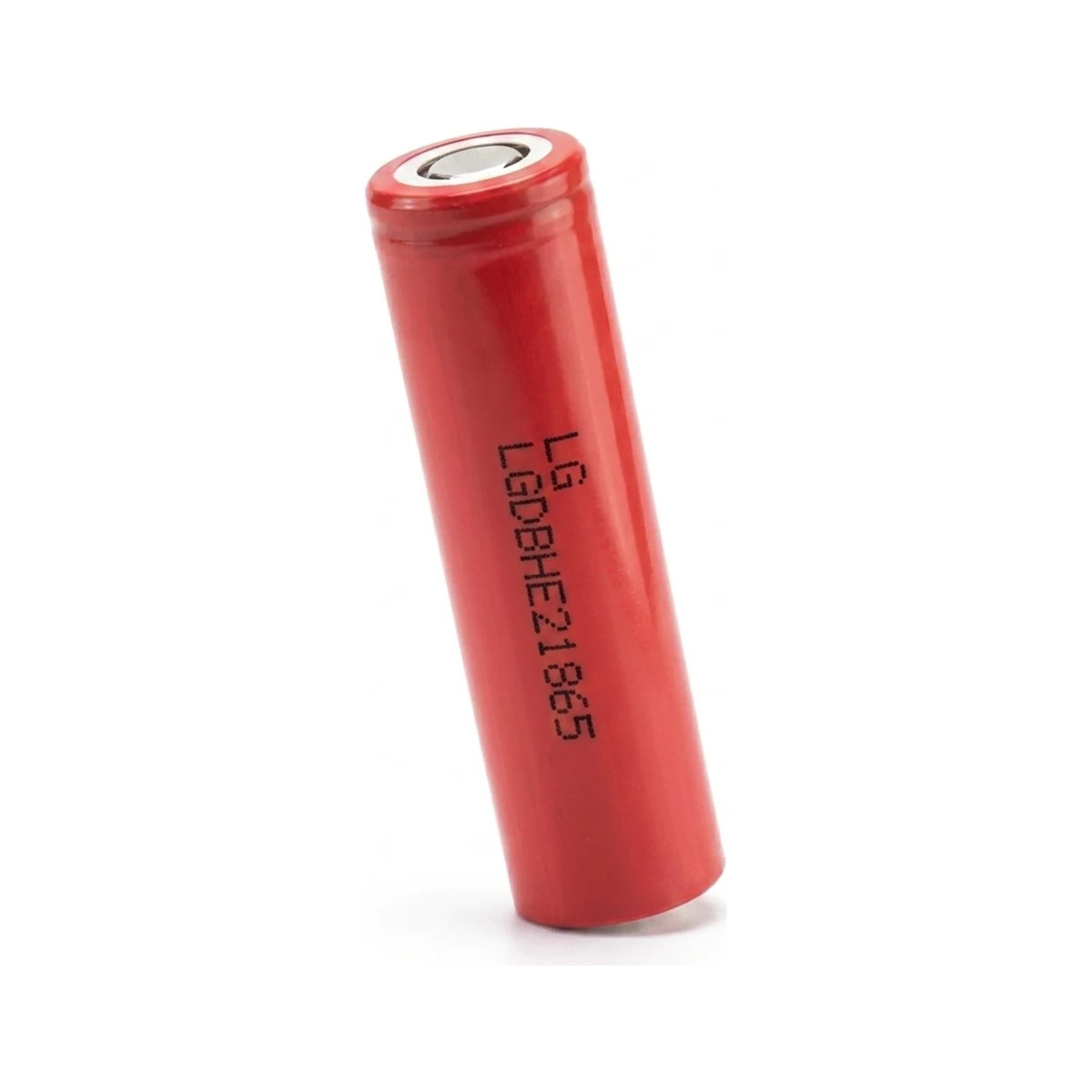

✱ RenderLG LGDBHE21865
At 2500 mAh, this ranks #63 of 169 18650 cells in our database. Mid-range for capacity among 18650 cells. Higher discharge than 91% of 18650 cells in our database. Great for high-drain builds.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.7 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2 V |
| Max continuous discharge | 20A (Mooch-tested) |
| Mooch CDR (trusted) | 20 A |
| Standard charge current | 1250 mA |
| Standard discharge current | 500mA |
| Internal resistance | 20 mΩ |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.3mm × 65mm |
| Weight | 48 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Red |
| Insulator ring | White |
| Performance | |
| Capacity | 2500 mAh |
| Energy | 9.25 Wh |
| Specific energy | 192.71 Wh/kg |
| Energy density | 541.05 Wh/L |
| Power density (gravimetric) | 1,542 W/kg |
| Power density (volumetric) | 4,328 W/L |
| Year released | 2013 |
| Operating Limits | |
| Charge temp | 0°C to 50°C |
| Discharge temp | -20°C to 75°C |
Independent test data: Mooch's test of the LGDBHE21865 ↗
At the standard 1250 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.
Voltage operating window
2VNominal
3.7VMax charge
4.2V
Usable range: 2.2V
C-rate conversion: LG LGDBHE21865 (2500mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.5 A | 5h 00m |
| 0.5C | 1.25 A | 2h 00m |
| 1C | 2.5 A | 1h 00m |
| 2C | 5 A | 30m |
| 3C | 7.5 A | 20m |
| 5C | 12.5 A | 12m |
| 8C | 20 A | 7m 30s |
Highlighted row is closest to the rated 20A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,250 mA | ~2h 00m |
| 1C | 2,500 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.7V | 4.2V | 2V | Flashlights, single-cell devices |
| 2S | 7.4V | 8.4V | 4V | RC vehicles, 7.2V packs |
| 3S | 11.1V | 12.6V | 6V | Power tools (10.8V nominal) |
| 4S | 14.8V | 16.8V | 8V | Ebike (small), some power tools |
| 7S | 25.9V | 29.4V | 14V | Ebike (24V system) |
| 10S | 37V | 42V | 20V | Ebike (36V system) |
| 13S | 48.1V | 54.6V | 26V | Ebike (48V standard) |
| 14S | 51.8V | 58.8V | 28V | Ebike (52V high-power) |
| 16S | 59.2V | 67.2V | 32V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 2,500 mAh | 9.3 Wh | 20 A |
| 2P | 5,000 mAh | 18.5 Wh | 40 A |
| 3P | 7,500 mAh | 27.8 Wh | 60 A |
| 4P | 10,000 mAh | 37 Wh | 80 A |
| 5P | 12,500 mAh | 46.3 Wh | 100 A |
| 6P | 15,000 mAh | 55.5 Wh | 120 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| LG LGDBHE21865 (this cell) | 2500 | 20A | 9.25 | 48g | 192.71 |
| LG LGABD11865 | 3000 | — | 11.3 | — | — |
| LG LGDBD11865 | 3000 | 5.8A | 11.3 | 48.5g | 232 |
| Samsung ICR18650-30B | 2950 | 5.9A | 11.2 | 48g | 232 |
| Samsung ICR18650-30A | 3000 | 6A | 11.1 | 48g | 231 |
| LG LGDBHG21865 | 3000 | 20A | 10.8 | 47g | 230 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
