Battery Building ToolsCell Database UR18650EA

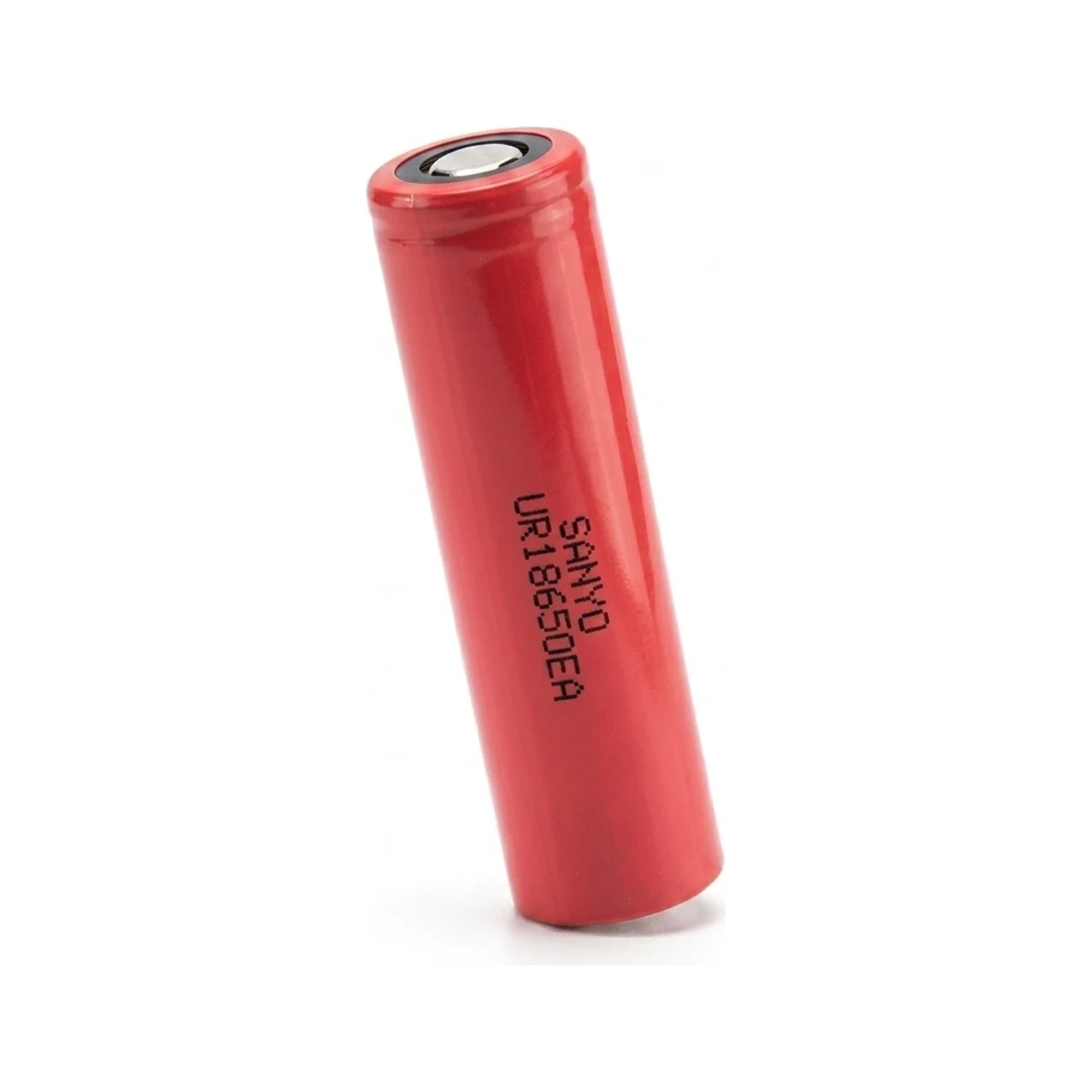

✱ Render

18650NMC

Sanyo UR18650EA

Name: Sanyo UR18650EA Lithium Battery Cell
Brand: Sanyo

Sanyo

Capacity2350 mAh8.46 Wh

Rated continuous8 A8A

Voltage window3.6 V2.75 – 4.2 V

Standard charge1570 mA~1.5 h to full

Build a pack with this cell →Download spec sheet (PDF)

At 2350 mAh, this ranks #78 of 169 18650 cells in our database. Mid-range for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.75 V
Max continuous discharge	8A
Standard charge current	1570 mA
Standard discharge current	450mA
Physical
Form factor	18650
Top type	Flat Top
Protected	No
Wrap color	Red
Insulator ring	Black
Performance
Capacity	2350 mAh
Energy	8.46 Wh
Operating Limits
Charge temp	0°C to 40°C
Discharge temp	-20°C to 60°C

At the standard 1570 mA charge rate, a full charge takes about 1.5 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.75VNominal
3.6VMax charge
4.2V

Usable range: 1.5V

C-rate conversion: Sanyo UR18650EA (2350mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.47 A	5h 00m
0.5C	1.18 A	2h 00m
1C	2.35 A	1h 00m
2C	4.7 A	30m
3C	7.05 A	20m

Highlighted row is closest to the rated 8A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	1,175 mA	~2h 00m
Standard	1,570 mA	~1h 30m
1C	2,350 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.8V	Flashlights, single-cell devices
2S	7.2V	8.4V	5.5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	8.3V	Power tools (10.8V nominal)
4S	14.4V	16.8V	11V	Ebike (small), some power tools
7S	25.2V	29.4V	19.3V	Ebike (24V system)
10S	36V	42V	27.5V	Ebike (36V system)
13S	46.8V	54.6V	35.8V	Ebike (48V standard)
14S	50.4V	58.8V	38.5V	Ebike (52V high-power)
16S	57.6V	67.2V	44V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	2,350 mAh	8.5 Wh	8 A
2P	4,700 mAh	16.9 Wh	16 A
3P	7,050 mAh	25.4 Wh	24 A
4P	9,400 mAh	33.8 Wh	32 A
5P	11,750 mAh	42.3 Wh	40 A
6P	14,100 mAh	50.8 Wh	48 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal4,700mAh118Wh16A max

13S4P

48V ebike standard

52 cells46.8V nominal9,400mAh440Wh32A max

16S4P

DIY powerwall

64 cells57.6V nominal9,400mAh541Wh32A max

4S6P

Power tool replacement

24 cells14.4V nominal14,100mAh203Wh48A max

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsUsable for powerwalls but lower capacity means you'll need more cells to hit your target kWh.

Ebike PacksMarginal. Check your motor's peak draw first. You might get voltage sag under load.

Car AudioNot enough discharge for car audio amplifiers. You need at least 15-20A continuous for most setups.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsLower capacity means shorter runtime. Better cells are available for flashlight use.

Power ToolsNot enough discharge or capacity for power tool use.

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Sanyo UR18650EA (this cell)	2350	8A	8.46	—	—
LG LGABC11865	2800	—	10.5	—	—
LG LGDC118650	2800	4.1A	10.5	47g	223
Samsung ICR18650-28A	2800	5.6A	10.5	48g	219
LG LGABC21865	2800	—	10.4	—	—
LG LGDBC21865	2800	—	10.4	—	—

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Sanyo UR18650EA?

What is the maximum discharge rate of the Sanyo UR18650EA?

How many UR18650EA cells do I need for a 48V ebike battery?

Can I use the UR18650EA for vaping?

What temperature range can the UR18650EA operate in?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.75V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
