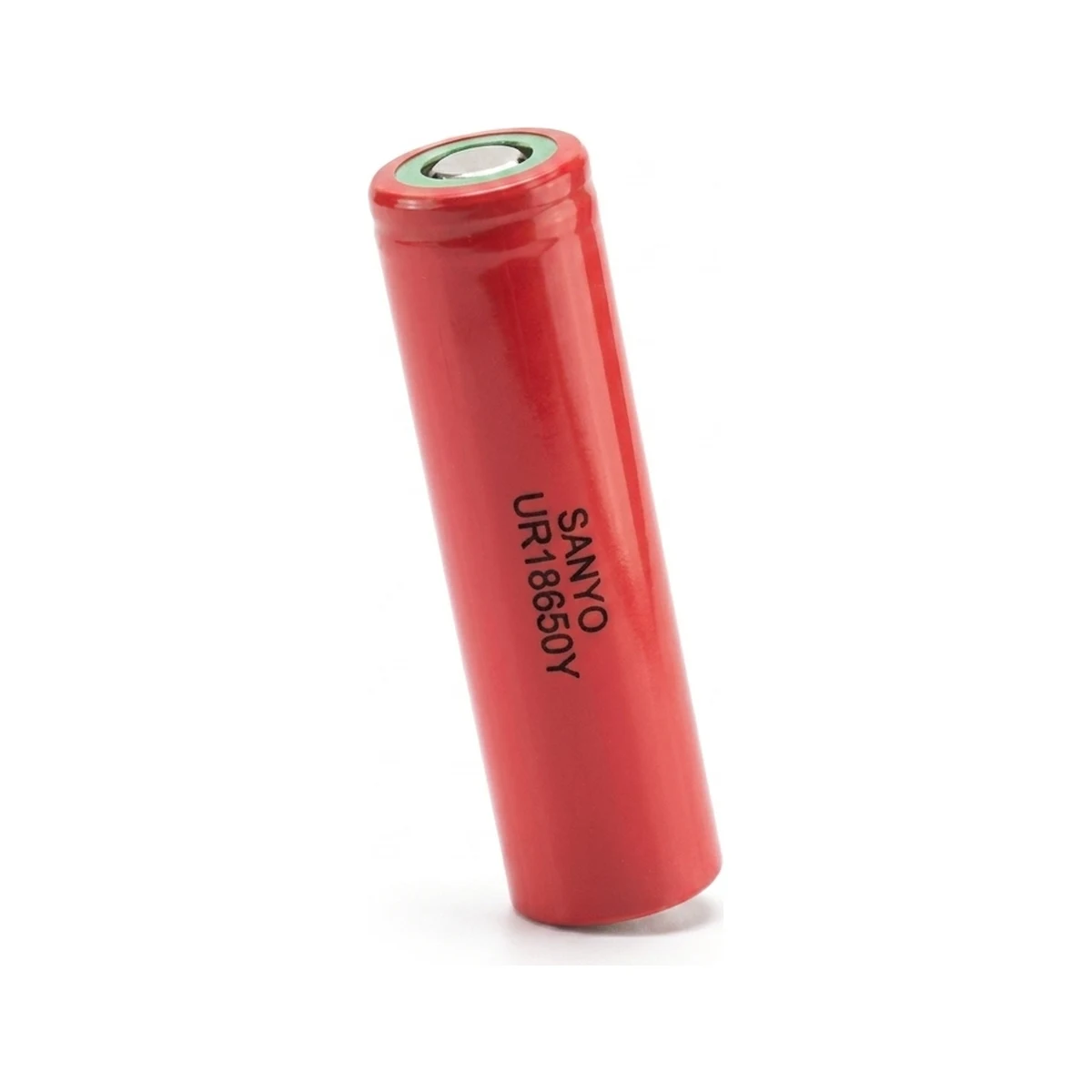

✱ Render

18.1 × 64.8 mm · 43.3 g

18650NMC

Sanyo UR18650Y

Name: Sanyo UR18650Y Lithium Battery Cell
Brand: Sanyo

Sanyo · released 2012

Capacity2000 mAh7.4 Wh · 170.9 Wh/kg

Rated continuous4 A4A

Voltage window3.7 V2.5 – 4.2 V

Standard charge1330 mA~1.5 h to full

Build a pack with this cell →Download spec sheet (PDF)Open the datasheet

At 2000 mAh, this ranks #127 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.7 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	4A
Standard charge current	1330 mA
Standard discharge current	400mA
Physical
Form factor	18650
Dimensions	18.1mm × 64.8mm
Weight	43.3 g
Top type	Flat Top
Protected	No
Wrap color	Red
Insulator ring	Green (Light)
Performance
Capacity	2000 mAh
Energy	7.4 Wh
Specific energy	170.9 Wh/kg
Energy density	443.82 Wh/L
Power density (gravimetric)	342 W/kg
Power density (volumetric)	888 W/L
Year released	2012
Operating Limits
Charge temp	0°C to 40°C
Discharge temp	-20°C to 60°C

At the standard 1330 mA charge rate, a full charge takes about 1.5 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.5VNominal
3.7VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Sanyo UR18650Y (2000mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.4 A	5h 00m
0.5C	1 A	2h 00m
1C	2 A	1h 00m
2C	4 A	30m

Highlighted row is closest to the rated 4A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	1,000 mA	~2h 00m
Standard	1,330 mA	~1h 30m
1C	2,000 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Datasheet

Download official Sanyo UR18650Y datasheet (PDF) ↗

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.7V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.4V	8.4V	5V	RC vehicles, 7.2V packs
3S	11.1V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.8V	16.8V	10V	Ebike (small), some power tools
7S	25.9V	29.4V	17.5V	Ebike (24V system)
10S	37V	42V	25V	Ebike (36V system)
13S	48.1V	54.6V	32.5V	Ebike (48V standard)
14S	51.8V	58.8V	35V	Ebike (52V high-power)
16S	59.2V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	2,000 mAh	7.4 Wh	4 A
2P	4,000 mAh	14.8 Wh	8 A
3P	6,000 mAh	22.2 Wh	12 A
4P	8,000 mAh	29.6 Wh	16 A
5P	10,000 mAh	37 Wh	20 A
6P	12,000 mAh	44.4 Wh	24 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.9V nominal4,000mAh104Wh8A maxCell weight: 0.61 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells48.1V nominal8,000mAh385Wh16A maxCell weight: 2.25 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells59.2V nominal8,000mAh474Wh16A maxCell weight: 2.77 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells14.8V nominal12,000mAh178Wh24A maxCell weight: 1.04 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsUsable for powerwalls but lower capacity means you'll need more cells to hit your target kWh.

Ebike PacksNot enough discharge for ebike use. Voltage sag would be a problem under load.

Car AudioNot enough discharge for car audio amplifiers. You need at least 15-20A continuous for most setups.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsLower capacity means shorter runtime. Better cells are available for flashlight use.

Power ToolsNot enough discharge or capacity for power tool use.

Physical dimensions

Dimensions18.1mm × 64.8mm

TopFlat Top

Format18650

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Sanyo UR18650Y (this cell)	2000	4A	7.4	43.3g	170.9
LG LGDBHE21865	2500	20A	9.3	48g	193
Sanyo UR18650F	2500	5A	9.3	47g	197
Sanyo UR18650FM	2500	5A	9.3	47g	197
LG LGCP218650	2500	—	9	—	—
LG LGDBHE41865	2500	20A	9	47g	191

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Sanyo UR18650Y?

What is the maximum discharge rate of the Sanyo UR18650Y?

How many UR18650Y cells do I need for a 48V ebike battery?

What does the Sanyo UR18650Y weigh?

Can I use the UR18650Y for vaping?

What temperature range can the UR18650Y operate in?

What size is the Sanyo UR18650Y?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
