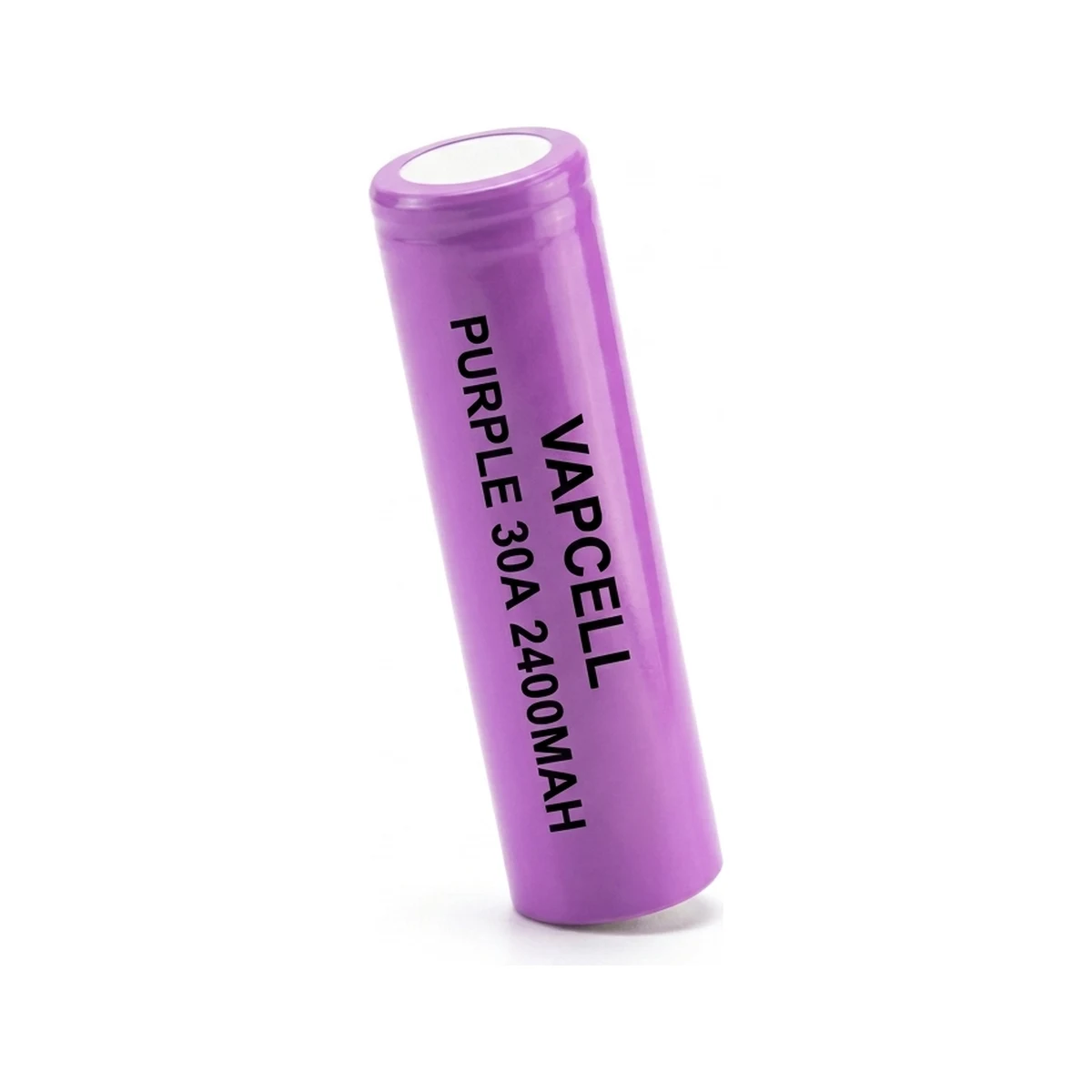

✱ RenderVapcell PURPLE 30A 2400mAh
At 2400 mAh, this ranks #153 of 279 18650 cells in our database. Mid-range for capacity among 18650 cells. Higher discharge than 90% of 18650 cells in our database. Great for high-drain builds.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 30A (Mooch-tested) |
| Mooch CDR (trusted) | 30 A |
| Standard charge current | 1000 mA |
| Standard discharge current | 480mA |
| Internal resistance | 10 mΩ |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.3mm × 64.8mm |
| Weight | 46 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Purple |
| Performance | |
| Capacity | 2400 mAh |
| Energy | 8.64 Wh |
| Specific energy | 187.83 Wh/kg |
| Energy density | 506.93 Wh/L |
| Power density (gravimetric) | 2,348 W/kg |
| Power density (volumetric) | 6,337 W/L |
| Year released | 2018 |
| Operating Limits | |
| Charge temp | 0°C to 45°C |
| Discharge temp | -20°C to 70°C |
Independent test data: Mooch's test of the PURPLE 30A 2400mAh ↗
At the standard 1000 mA charge rate, a full charge takes about 2.4 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: Vapcell PURPLE 30A 2400mAh (2400mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.48 A | 5h 00m |
| 0.5C | 1.2 A | 2h 00m |
| 1C | 2.4 A | 1h 00m |
| 2C | 4.8 A | 30m |
| 3C | 7.2 A | 20m |
| 5C | 12 A | 12m |
| 8C | 19.2 A | 7m 30s |
| 10C | 24 A | 6m |
Highlighted row is closest to the rated 30A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| Standard | 1,000 mA | ~2h 24m |
| 0.5C | 1,200 mA | ~2h 00m |
| 1C | 2,400 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 2,400 mAh | 8.6 Wh | 30 A |
| 2P | 4,800 mAh | 17.3 Wh | 60 A |
| 3P | 7,200 mAh | 25.9 Wh | 90 A |
| 4P | 9,600 mAh | 34.6 Wh | 120 A |
| 5P | 12,000 mAh | 43.2 Wh | 150 A |
| 6P | 14,400 mAh | 51.8 Wh | 180 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Vapcell PURPLE 30A 2400mAh (this cell) | 2400 | 30A | 8.64 | 46g | 187.83 |
| Panasonic NCR18650PD | 2900 | 10A | 10.7 | 44.5g | 241 |
| LG LGABC11865 | 2800 | 4.1A | 10.5 | 47g | 223 |
| LG LGDC118650 | 2800 | 4.1A | 10.5 | 47g | 223 |
| Samsung ICR18650-28A | 2800 | 5.6A | 10.5 | 48g | 219 |
| Samsung INR18650-29E | 2900 | 5A | 10.5 | 48g | 219 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
