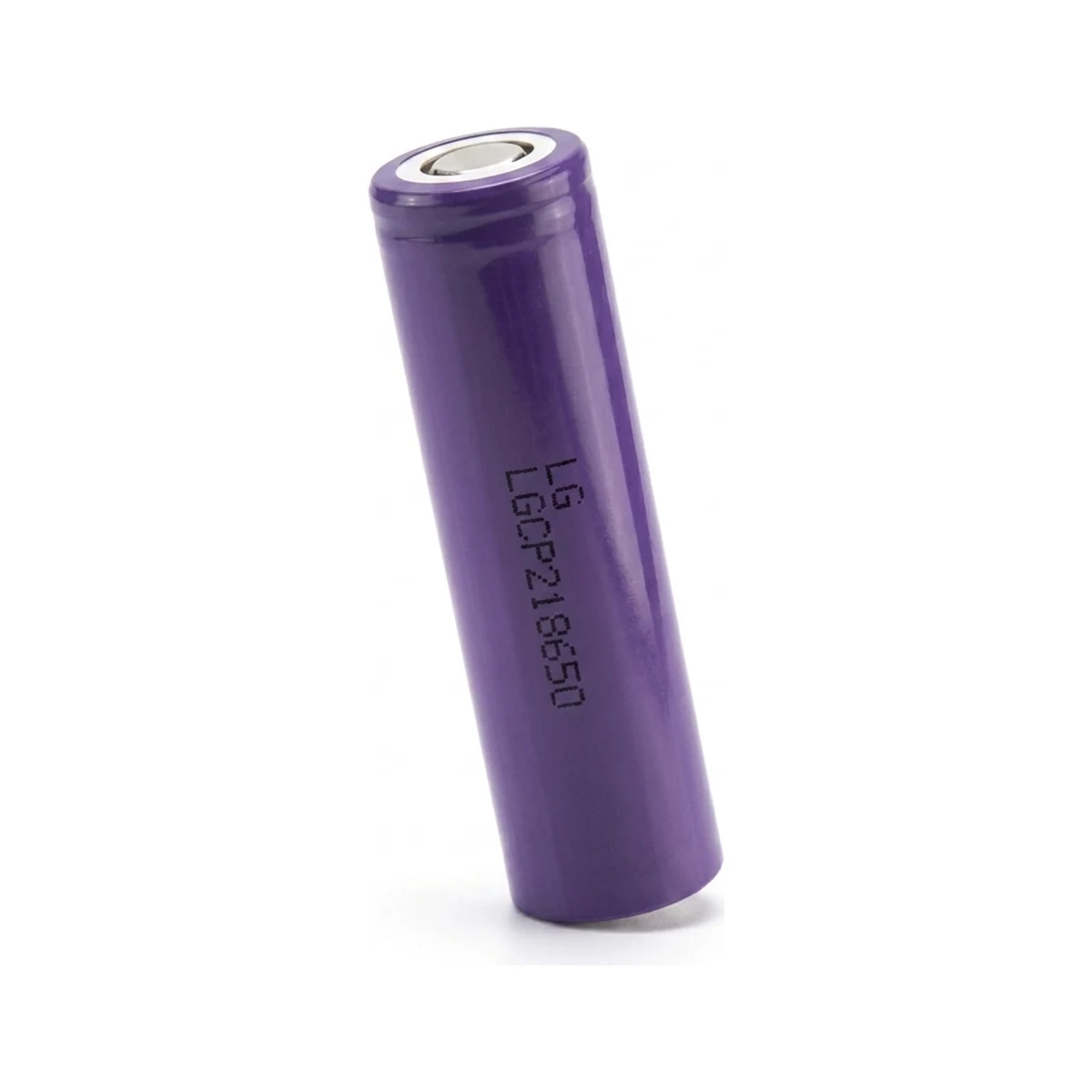

✱ RenderLG LGCP218650
At 2500 mAh, this ranks #63 of 169 18650 cells in our database. Mid-range for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 3 V |
| Standard charge current | 480 mA |
| Physical | |
| Form factor | 18650 |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Purple (Dark) |
| Insulator ring | White |
| Performance | |
| Capacity | 2500 mAh |
| Energy | 9 Wh |
| Cycle life | 400 cycles |
At the standard 480 mA charge rate, a full charge takes about 5.2 hours. The last bit is a slow taper to top it off.
Voltage operating window
3VNominal
3.6VMax charge
4.2V
Usable range: 1.2V
Charging
| Rate | Current | Estimated time |
|---|---|---|
| Standard | 480 mA | ~5h 12m |
| 0.5C | 1,250 mA | ~2h 00m |
| 1C | 2,500 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 3V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 6V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 9V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 12V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 21V | Ebike (24V system) |
| 10S | 36V | 42V | 30V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 39V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 42V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 48V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy |
|---|---|---|
| 1P | 2,500 mAh | 9 Wh |
| 2P | 5,000 mAh | 18 Wh |
| 3P | 7,500 mAh | 27 Wh |
| 4P | 10,000 mAh | 36 Wh |
| 5P | 12,500 mAh | 45 Wh |
| 6P | 15,000 mAh | 54 Wh |
Example pack configurations
Design a custom pack with this cell:
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| LG LGCP218650 (this cell) | 2500 | — | 9 | — | — |
| LG LGABD11865 | 3000 | — | 11.3 | — | — |
| LG LGDBD11865 | 3000 | 5.8A | 11.3 | 48.5g | 232 |
| Samsung ICR18650-30B | 2950 | 5.9A | 11.2 | 48g | 232 |
| Samsung ICR18650-30A | 3000 | 6A | 11.1 | 48g | 231 |
| LG LGDBHG21865 | 3000 | 20A | 10.8 | 47g | 230 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 3V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
