Battery Building ToolsCell Database CGR18650DA

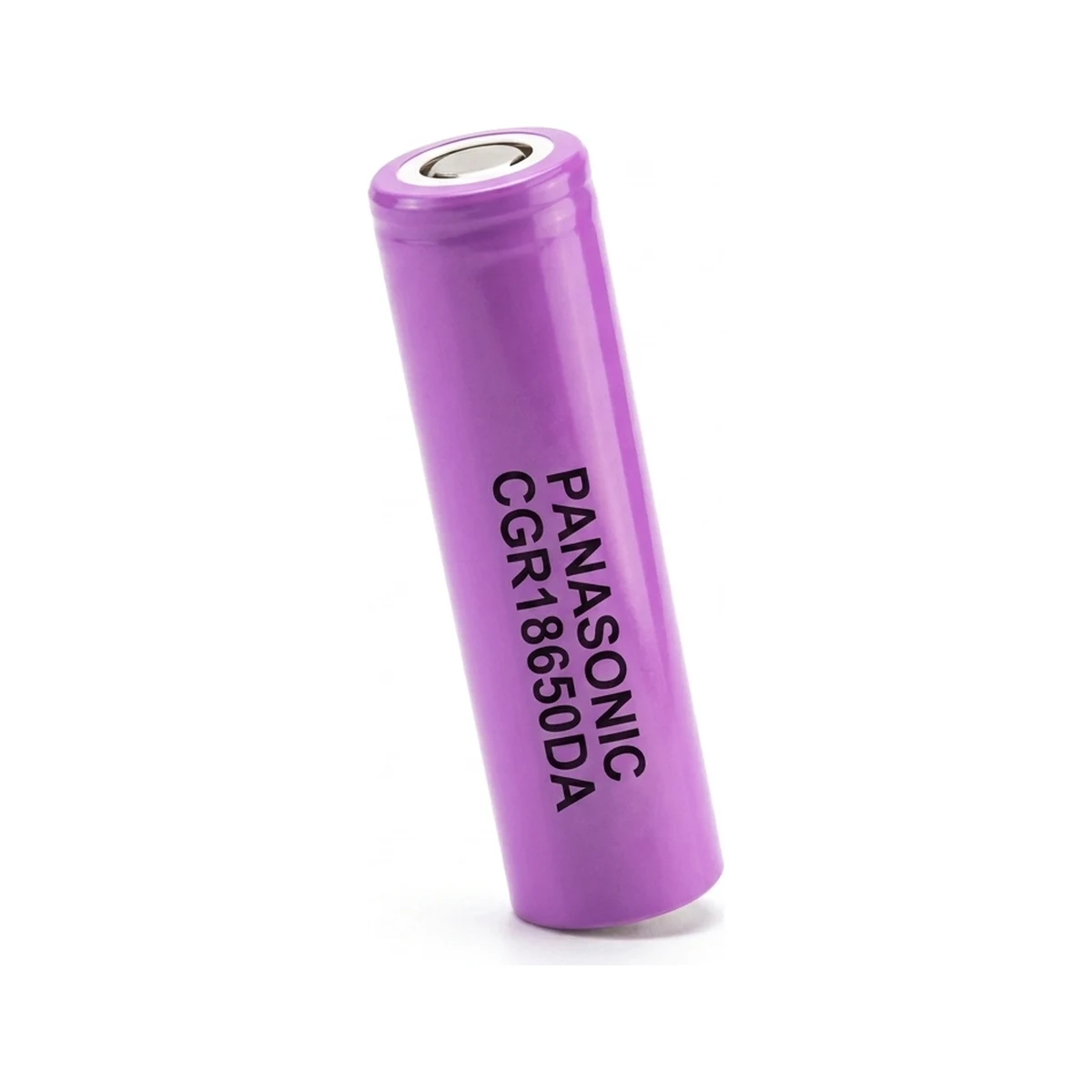

✱ Render

18.6 × 65.2 mm · 45 g

18650NMC

Panasonic CGR18650DA

Name: Panasonic CGR18650DA Lithium Battery Cell
Brand: Panasonic

Panasonic · released 2007

Capacity2450 mAh8.82 Wh · 196 Wh/kg

Rated continuous4.7 A4.66A

Voltage window3.6 V3 – 4.2 V

Standard charge1630 mA~1.5 h to full

Build a pack with this cell →Download spec sheet (PDF)Open the datasheet

At 2450 mAh, this ranks #70 of 169 18650 cells in our database. Mid-range for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	3 V
Max continuous discharge	4.66A
Standard charge current	1630 mA
Standard discharge current	466mA
Physical
Form factor	18650
Dimensions	18.6mm × 65.2mm
Weight	45 g
Top type	Flat Top
Protected	No
Wrap color	Purple
Insulator ring	White
Performance
Capacity	2450 mAh
Energy	8.82 Wh
Specific energy	196 Wh/kg
Energy density	497.86 Wh/L
Power density (gravimetric)	376 W/kg
Power density (volumetric)	955 W/L
Cycle life	300 cycles
Year released	2007

At the standard 1630 mA charge rate, a full charge takes about 1.5 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
3VNominal
3.6VMax charge
4.2V

Usable range: 1.2V

C-rate conversion: Panasonic CGR18650DA (2450mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.49 A	5h 00m
0.5C	1.23 A	2h 00m
1C	2.45 A	1h 00m
2C	4.9 A	30m

Highlighted row is closest to the rated 4.7A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	1,225 mA	~2h 00m
Standard	1,630 mA	~1h 30m
1C	2,450 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Datasheet

Download official Panasonic CGR18650DA datasheet (PDF) ↗

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	3V	Flashlights, single-cell devices
2S	7.2V	8.4V	6V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	9V	Power tools (10.8V nominal)
4S	14.4V	16.8V	12V	Ebike (small), some power tools
7S	25.2V	29.4V	21V	Ebike (24V system)
10S	36V	42V	30V	Ebike (36V system)
13S	46.8V	54.6V	39V	Ebike (48V standard)
14S	50.4V	58.8V	42V	Ebike (52V high-power)
16S	57.6V	67.2V	48V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	2,450 mAh	8.8 Wh	4.7 A
2P	4,900 mAh	17.6 Wh	9.4 A
3P	7,350 mAh	26.5 Wh	14.1 A
4P	9,800 mAh	35.3 Wh	18.8 A
5P	12,250 mAh	44.1 Wh	23.5 A
6P	14,700 mAh	52.9 Wh	28.2 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal4,900mAh123Wh9A maxCell weight: 0.63 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells46.8V nominal9,800mAh459Wh19A maxCell weight: 2.34 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells57.6V nominal9,800mAh564Wh19A maxCell weight: 2.88 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells14.4V nominal14,700mAh212Wh28A maxCell weight: 1.08 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsUsable for powerwalls but lower capacity means you'll need more cells to hit your target kWh.

Ebike PacksNot enough discharge for ebike use. Voltage sag would be a problem under load.

Car AudioNot enough discharge for car audio amplifiers. You need at least 15-20A continuous for most setups.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsLower capacity means shorter runtime. Better cells are available for flashlight use.

Power ToolsNot enough discharge or capacity for power tool use.

Physical dimensions

Dimensions18.6mm × 65.2mm

TopFlat Top

Format18650

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Panasonic CGR18650DA (this cell)	2450	4.7A	8.82	45g	196
Samsung ICR18650-30B	2950	5.9A	11.2	48g	232
LG LGABD21865	2950	60A	10.7	49g	219
Panasonic NCR18650PD	2900	10A	10.7	44.5g	241
LG LGABC11865	2800	—	10.5	—	—
LG LGDC118650	2800	4.1A	10.5	47g	223

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Panasonic CGR18650DA?

What is the maximum discharge rate of the Panasonic CGR18650DA?

How many CGR18650DA cells do I need for a 48V ebike battery?

What does the Panasonic CGR18650DA weigh?

Can I use the CGR18650DA for vaping?

What is the cycle life of the Panasonic CGR18650DA?

What size is the Panasonic CGR18650DA?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 3V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
