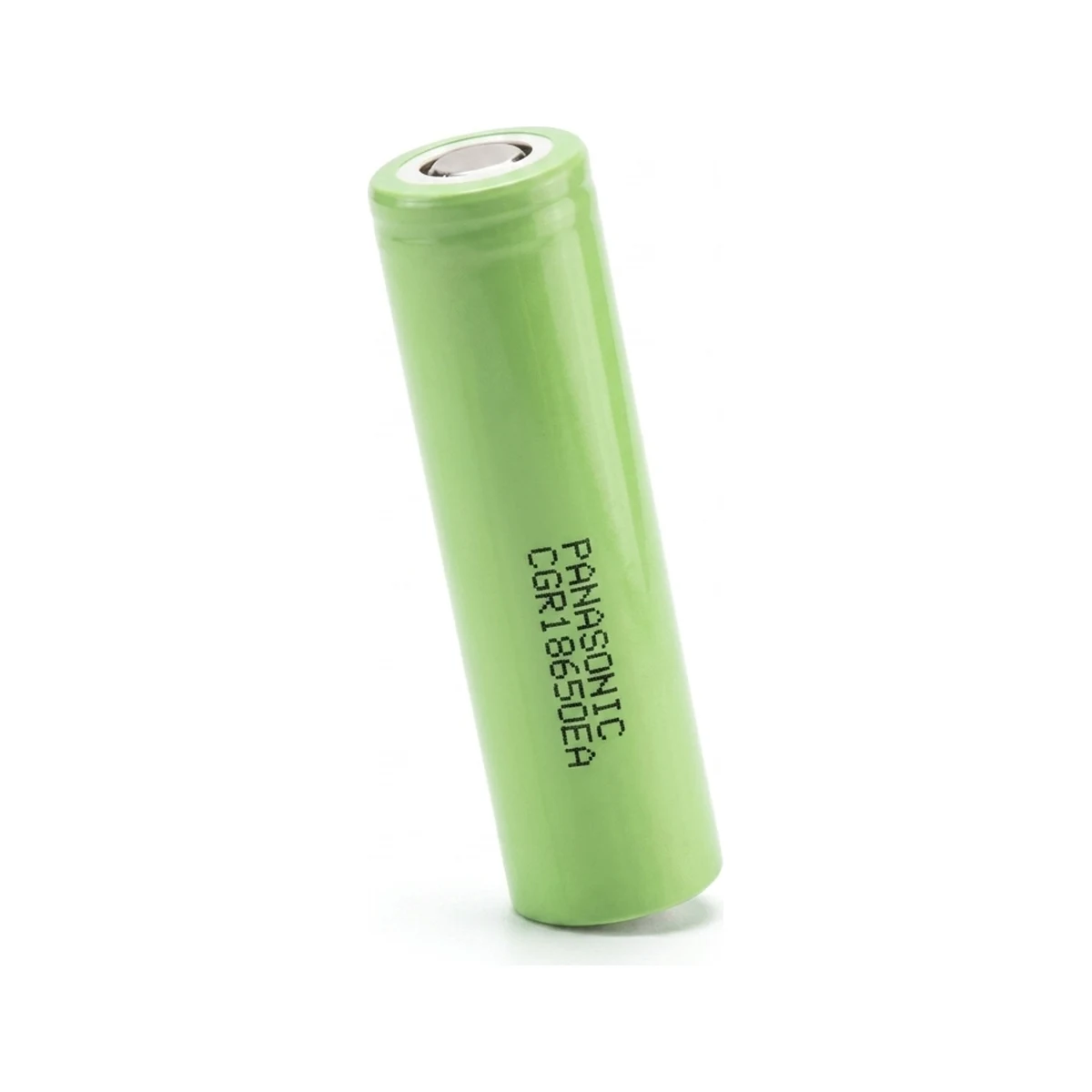

Panasonic CGR18650EA Specifications
18650 · NMC — full datasheet specs for the Panasonic CGR18650EA, plus what it delivers in common DIY pack configurations. Plan a build with it in the Battery Pack Calculator.
At 2550 mAh it ranks #59 of 165 18650 cells in our database by capacity — a mid-capacity 18650 options.
Full specifications
| Capacity | 2550 mAh |
|---|---|
| Nominal voltage | 3.7 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 3 V |
| Energy | 9.44 Wh |
| Standard charge current | 1750 mA |
| Standard discharge current | 490mA |
| Chemistry | NMC |
| Form factor | 18650 |
| Wrap color | Green (Light) |
| Insulator ring | White |
At the standard 1750 mA charge rate, a full charge takes roughly 1.5 hours plus the constant-voltage taper at the end.
The CGR18650EA in a battery pack
Common DIY series configurations using this cell's real 3.7V nominal voltage, with a 3-cells-in-parallel (3P) example for capacity:
| Config | Nominal voltage | Fully charged | Cells (3P) | Capacity (3P) | Energy (3P) | |
|---|---|---|---|---|---|---|
| 3S | 11.1 V | 12.6 V | 9 | 7.6 Ah | 85 Wh | cell count guide |
| 7S | 25.9 V | 29.4 V | 21 | 7.6 Ah | 198 Wh | cell count guide |
| 10S | 37 V | 42 V | 30 | 7.6 Ah | 283 Wh | cell count guide |
| 13S | 48.1 V | 54.6 V | 39 | 7.6 Ah | 368 Wh | cell count guide |
| 14S | 51.8 V | 58.8 V | 42 | 7.6 Ah | 396 Wh | cell count guide |
