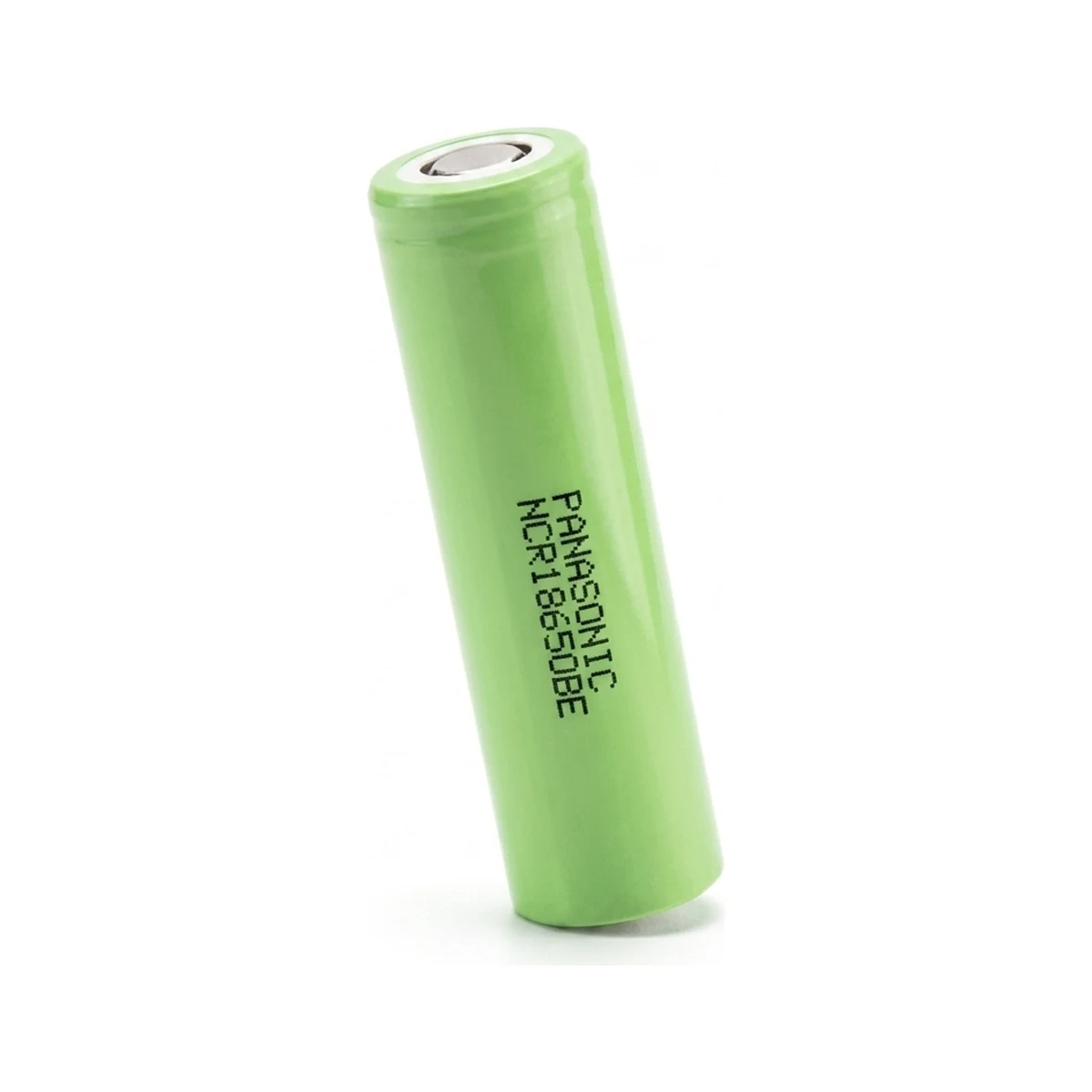

✱ Render

18.2 × 65.5 mm · 48.5 g

18650NMC

Panasonic NCR18650BE

Name: Panasonic NCR18650BE Lithium Battery Cell
Brand: Panasonic

Panasonic · released 2013

Capacity3000 mAh10.8 Wh · 222.68 Wh/kg

Rated continuous3.6 A3.636A

Resistance40 mΩDC internal resistance

Voltage window3.6 V2.5 – 4.2 V

Standard charge909 mA~3.3 h to full

Build a pack with this cell →Download spec sheet (PDF)

At 3000 mAh, this ranks #15 of 169 18650 cells in our database. Near the top for capacity among 18650 cells. More capacity than 92% of 18650 cells in our database, but lower discharge than average.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	3.636A
Standard charge current	909 mA
Standard discharge current	606mA
Internal resistance	40 mΩ
Physical
Form factor	18650
Dimensions	18.2mm × 65.5mm
Weight	48.5 g
Top type	Flat Top
Protected	No
Wrap color	Green (Light)
Insulator ring	White
Performance
Capacity	3000 mAh
Energy	10.8 Wh
Specific energy	222.68 Wh/kg
Energy density	633.8 Wh/L
Power density (gravimetric)	267 W/kg
Power density (volumetric)	761 W/L
Year released	2013

At the standard 909 mA charge rate, a full charge takes about 3.3 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.5VNominal
3.6VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Panasonic NCR18650BE (3000mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.6 A	5h 00m
0.5C	1.5 A	2h 00m
1C	3 A	1h 00m

Highlighted row is closest to the rated 3.6A continuous discharge.

Charging

Rate	Current	Estimated time
Standard	909 mA	~3h 18m
0.5C	1,500 mA	~2h 00m
1C	3,000 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.2V	8.4V	5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.4V	16.8V	10V	Ebike (small), some power tools
7S	25.2V	29.4V	17.5V	Ebike (24V system)
10S	36V	42V	25V	Ebike (36V system)
13S	46.8V	54.6V	32.5V	Ebike (48V standard)
14S	50.4V	58.8V	35V	Ebike (52V high-power)
16S	57.6V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	3,000 mAh	10.8 Wh	3.6 A
2P	6,000 mAh	21.6 Wh	7.2 A
3P	9,000 mAh	32.4 Wh	10.8 A
4P	12,000 mAh	43.2 Wh	14.4 A
5P	15,000 mAh	54 Wh	18 A
6P	18,000 mAh	64.8 Wh	21.6 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal6,000mAh151Wh7A maxCell weight: 0.68 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells46.8V nominal12,000mAh562Wh14A maxCell weight: 2.52 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells57.6V nominal12,000mAh691Wh14A maxCell weight: 3.1 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells14.4V nominal18,000mAh259Wh22A maxCell weight: 1.16 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksNot enough discharge for ebike use. Voltage sag would be a problem under load.

Car AudioNot enough discharge for car audio amplifiers. You need at least 15-20A continuous for most setups.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsHigh capacity means long runtime. Great for everyday carry and extended use.

Power ToolsNot enough discharge or capacity for power tool use.

Physical dimensions

Dimensions18.2mm × 65.5mm

TopFlat Top

Format18650

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Panasonic NCR18650BE (this cell)	3000	3.6A	10.8	48.5g	222.68
LG LGEBMJ11865	3500	10A	12.7	—	—
LG LGDBMJ11865	3500	10A	12.7	49g	259
LG LGABF1L1865	3350	4.9A	12.2	49g	248
LG LGGBF1L1865	3350	4.9A	12.2	—	—
Panasonic NCR18650B	3350	4A	12.1	47.5g	254

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Panasonic NCR18650BE?

What is the maximum discharge rate of the Panasonic NCR18650BE?

How many NCR18650BE cells do I need for a 48V ebike battery?

What does the Panasonic NCR18650BE weigh?

Can I use the NCR18650BE for vaping?

What size is the Panasonic NCR18650BE?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
