Sanyo Lithium Battery Cells
Sanyo was a pioneer in lithium-ion technology before being acquired by Panasonic in 2011. Many Sanyo cells are still available on the market and remain solid choices, especially the NCR18650GA (also sold under the Panasonic brand).
| # | Cell | Capacity mAh | Nominal V | Rated A | Mooch A | IR mΩ | Wh | Chemistry | Format | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 |  NCR18650GAMooch Sanyo | 3300 | 3.6 | 10 | 10 | 0 | 11.88 | NMC | 18650 | Open → |
| 2 |  Sanyo | 3200 | 3.6 | 4.875 | — | 0 | 11.52 | NMC | 18650 | Open → |
| 3 |  Sanyo | 3200 | 3.6 | 7 | — | 0 | 11.52 | NMC | 18650 | Open → |
| 4 |  20700AMooch Sanyo | 3100 | 3.6 | 30 | 30 | — | 11.16 | NCA | 20700 | Open → |
| 5 |  Sanyo | 2650 | 3.7 | 5.3 | — | 0 | 9.805 | NMC | 18650 | Open → |
| 6 |  Sanyo | 2620 | 3.7 | 5.8 | — | 0 | 9.694 | NMC | 18650 | Open → |
| 7 |  Sanyo | 2600 | 3.7 | 5 | — | 0 | 9.62 | NMC | 18650 | Open → |
| 8 |  Sanyo | 2500 | 3.7 | 5 | — | 0 | 9.25 | NMC | 18650 | Open → |
| 9 |  Sanyo | 2500 | 3.7 | 5 | — | 0 | 9.25 | NMC | 18650 | Open → |
| 10 |  Sanyo | 2400 | 3.7 | 4.8 | — | 0 | 8.88 | NMC | 18650 | Open → |
| 11 |  Sanyo | 2400 | 3.7 | 4.6 | — | 0 | 8.88 | NMC | 18650 | Open → |
| 12 |  Sanyo | 2350 | 3.6 | 8 | — | 0 | 8.46 | NMC | 18650 | Open → |
| 13 |  Sanyo | 2200 | 3.6 | 4.3 | — | 0 | 7.92 | NMC | 18650 | Open → |
| 14 |  Sanyo | 2100 | 3.7 | 4.2 | — | 0 | 7.77 | NMC | 18650 | Open → |
| 15 |  Sanyo | 2000 | 3.6 | 6.15 | — | 0 | 7.2 | NMC | 18650 | Open → |
| 16 |  Sanyo | 2000 | 3.7 | 4 | — | 0 | 7.4 | NMC | 18650 | Open → |
| 17 |  Sanyo | 1950 | 3.6 | 20 | — | 25 | 7.02 | NMC | 18650 | Open → |
| 18 |  Sanyo | 1900 | 3.7 | — | — | 0 | 7.03 | NMC | 18650 | Open → |
| 19 |  Sanyo | 1700 | 3.7 | — | — | 0 | 6.29 | NMC | 18650 | Open → |
| 20 |  Sanyo | 1500 | 3.7 | 15 | — | 0 | 5.55 | NMC | 18650 | Open → |
| 21 |  Sanyo | 1500 | 3.7 | 10 | — | 0 | 5.55 | NMC | 18650 | Open → |
| 22 |  Sanyo | 1200 | 3.7 | 10 | — | 0 | 4.44 | NMC | 18650 | Open → |
| 23 |  Sanyo | 1100 | 3.7 | 10 | — | 0 | 4.07 | NMC | 18650 | Open → |
#1 NCR18650GAMooch
Sanyo · 18650 · NMC
Capacity3300mAh
Mooch A10rated 10
IR0mΩ
Energy11.88Wh
#2 NCR18650BF
Sanyo · 18650 · NMC
Capacity3200mAh
Mooch A—rated 4.875
IR0mΩ
Energy11.52Wh
#3 NCR18650BL
Sanyo · 18650 · NMC
Capacity3200mAh
Mooch A—rated 7
IR0mΩ
Energy11.52Wh
#4 20700AMooch
Sanyo · 20700 · NCA
Capacity3100mAh
Mooch A30rated 30
IR—mΩ
Energy11.16Wh

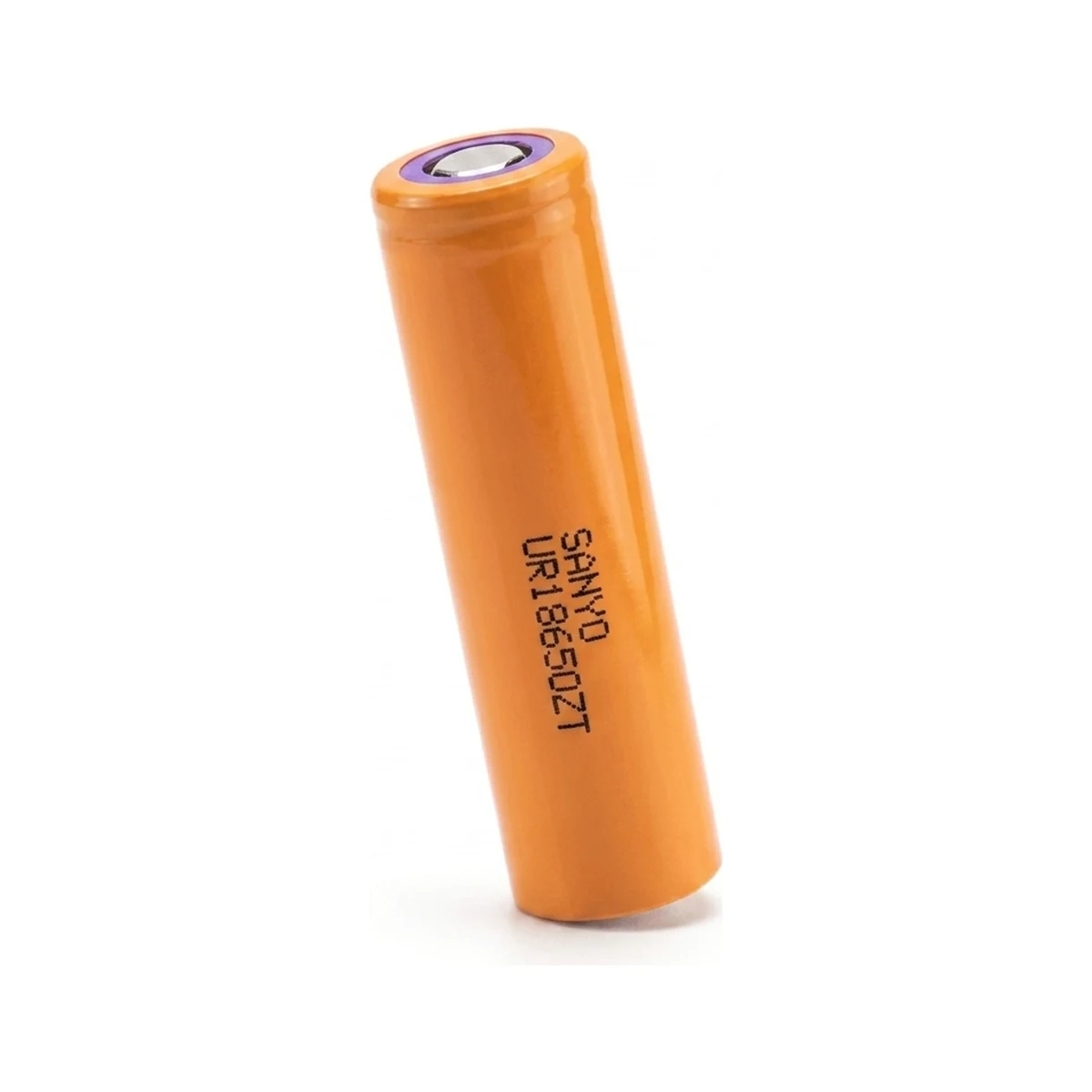

#5 UR18650ZT
Sanyo · 18650 · NMC
Capacity2650mAh
Mooch A—rated 5.3
IR0mΩ
Energy9.805Wh
#6 UR18650ZTA
Sanyo · 18650 · NMC
Capacity2620mAh
Mooch A—rated 5.8
IR0mΩ
Energy9.694Wh
#7 UR18650ZY
Sanyo · 18650 · NMC
Capacity2600mAh
Mooch A—rated 5
IR0mΩ
Energy9.62Wh
#8 UR18650F
Sanyo · 18650 · NMC
Capacity2500mAh
Mooch A—rated 5
IR0mΩ
Energy9.25Wh
#9 UR18650FM
Sanyo · 18650 · NMC
Capacity2500mAh
Mooch A—rated 5
IR0mΩ
Energy9.25Wh
#10 UR18650FB
Sanyo · 18650 · NMC
Capacity2400mAh
Mooch A—rated 4.8
IR0mΩ
Energy8.88Wh
#11 UR18650FK
Sanyo · 18650 · NMC
Capacity2400mAh
Mooch A—rated 4.6
IR0mΩ
Energy8.88Wh
#12 UR18650EA
Sanyo · 18650 · NMC
Capacity2350mAh
Mooch A—rated 8
IR0mΩ
Energy8.46Wh
#13 UR18650A
Sanyo · 18650 · NMC
Capacity2200mAh
Mooch A—rated 4.3
IR0mΩ
Energy7.92Wh
#14 UR18650FJ
Sanyo · 18650 · NMC
Capacity2100mAh
Mooch A—rated 4.2
IR0mΩ
Energy7.77Wh
#15 UR18650E
Sanyo · 18650 · NMC
Capacity2000mAh
Mooch A—rated 6.15
IR0mΩ
Energy7.2Wh
#16 UR18650Y
Sanyo · 18650 · NMC
Capacity2000mAh
Mooch A—rated 4
IR0mΩ
Energy7.4Wh
#17 UR18650RX
Sanyo · 18650 · NMC
Capacity1950mAh
Mooch A—rated 20
IR25mΩ
Energy7.02Wh
#18 UR18650H
Sanyo · 18650 · NMC
Capacity1900mAh
Mooch A—A
IR0mΩ
Energy7.03Wh
#19 UR18650P
Sanyo · 18650 · NMC
Capacity1700mAh
Mooch A—A
IR0mΩ
Energy6.29Wh
#20 UR18650W2
Sanyo · 18650 · NMC
Capacity1500mAh
Mooch A—rated 15
IR0mΩ
Energy5.55Wh
#21 UR18650WX
Sanyo · 18650 · NMC
Capacity1500mAh
Mooch A—rated 10
IR0mΩ
Energy5.55Wh
#22 UR18650SA
Sanyo · 18650 · NMC
Capacity1200mAh
Mooch A—rated 10
IR0mΩ
Energy4.44Wh
#23 UR18650S
Sanyo · 18650 · NMC
Capacity1100mAh
Mooch A—rated 10
IR0mΩ
Energy4.07Wh
Rated A is the manufacturer's continuous figure; Mooch A is independently measured and usually lower. Where they disagree, size to Mooch.
Found the right cell? Take it into the Pack Planner to size your pack, then use the Pack Designer for the physical layout. Need a BMS? The BMS Picker matches your specs to products. Check our essential supplies for everything else you need to build.
Sanyo and Panasonic share ownership. See Panasonic cells and the best 18650 cells for powerwalls for stationary builds.
